CP35301547
ActiveSame Sky (Formerly CUI Devices)

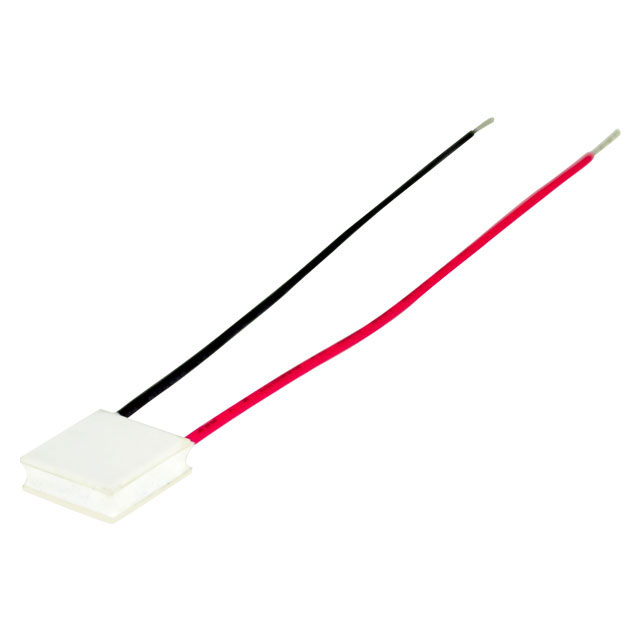

PELTIER, 30 X 15 X 4.7 MM, 3.5 A
CP35301547
ActiveSame Sky (Formerly CUI Devices)
PELTIER, 30 X 15 X 4.7 MM, 3.5 A
Description
General part information
CP35301547
Peltier Module 7.9W @ 27°C 3.5 A 80°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CP35301547 |
|---|---|
| Current - Max | 3.5 A |
| Delta Tmax | 68 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 4.7 mm |
| Maximum Power Dissipation (Qmax) | 7.9 W |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Resistance | 810 mOhms |
| Size / Dimension Length | 30 mm |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 15 mm |
| Voltage - Max | 4.2 V |
