B82141A1563K009
ActiveEPCOS - TDK Electronics
FIXED IND 56UH 195MA 2.6 OHM TH
B82141A1563K009
ActiveEPCOS - TDK Electronics
FIXED IND 56UH 195MA 2.6 OHM TH
Description
General part information
B82141A1563K009

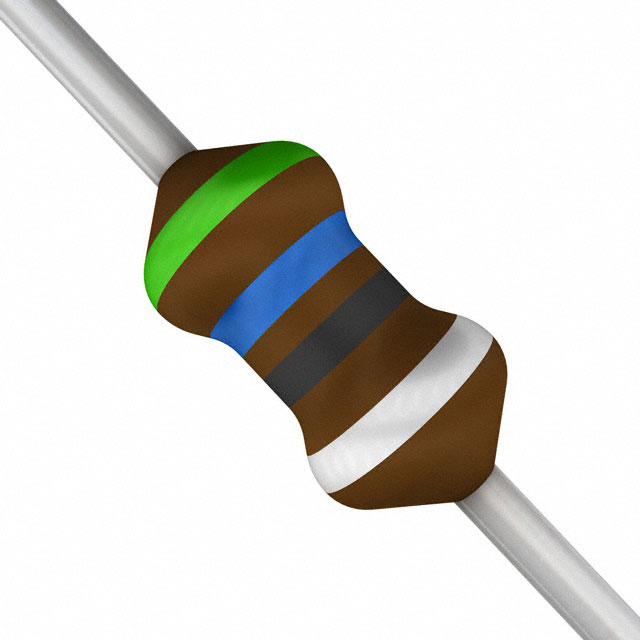

56 µH Unshielded Drum Core, Wirewound Inductor 195 mA 2.6Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82141A1563K009 |
|---|---|
| Current Rating | 195 mA |
| DC Resistance (DCR) (Max) | 2.6 Ohm |
| Frequency - Self Resonant | 6.8 MHz |
| Inductance | 56 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.118 in |
| Size / Dimension Length | 0.268 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
