9418 060100
ActiveMULTICONDUCTOR CABLE, AUDIO CONTROL, SHIELDED, 4 CONDUCTOR, 18 AWG, 100 FT, 30.5 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9418 060100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.22 mm |
| Jacket (Insulation) Diameter [diameter] | 0.245 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Chrome |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation, Control |
| Wire Gauge | 18 AWG |
9418 Series
| Part | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Shield Coverage | Number of Conductors | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Conductor Material | Length [x] | Length [x] | Cable Type | Wire Gauge | Jacket (Insulation) Material | Voltage | Length | Ratings | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | Drain Wire | 0.889 mm | 0.035 in | Foil | Audio Control Instrumentation | 19 | 30 AWG | 6.22 mm | 0.245 in | Poly-Vinyl Chloride (PVC) | 100 % | 4 | Aluminum | -20 C | 80 C | Chrome | Copper Tinned | 30.5 m | 100 ft | Multi-Conductor | 18 AWG | Poly-Vinyl Chloride (PVC) | ||||
Belden Inc. | Drain Wire | 0.889 mm | 0.035 in | Foil | Audio Control Instrumentation | 19 | 30 AWG | 6.22 mm | 0.245 in | Poly-Vinyl Chloride (PVC) | 100 % | 4 | Aluminum | -20 C | 80 C | Chrome | Copper Tinned | 10000 ft | Multi-Conductor | 18 AWG | Poly-Vinyl Chloride (PVC) | 300 V | 3048 m | UL Style 2464 | ||
Belden Inc. | Drain Wire | 0.889 mm | 0.035 in | Foil | Audio Control Instrumentation | 19 | 30 AWG | 6.22 mm | 0.245 in | Poly-Vinyl Chloride (PVC) | 100 % | 4 | Aluminum | -20 C | 80 C | Chrome | Copper Tinned | Multi-Conductor | 18 AWG | Poly-Vinyl Chloride (PVC) | 300 V | 304.8 m | UL Style 2464 | 1000 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
9418 Series

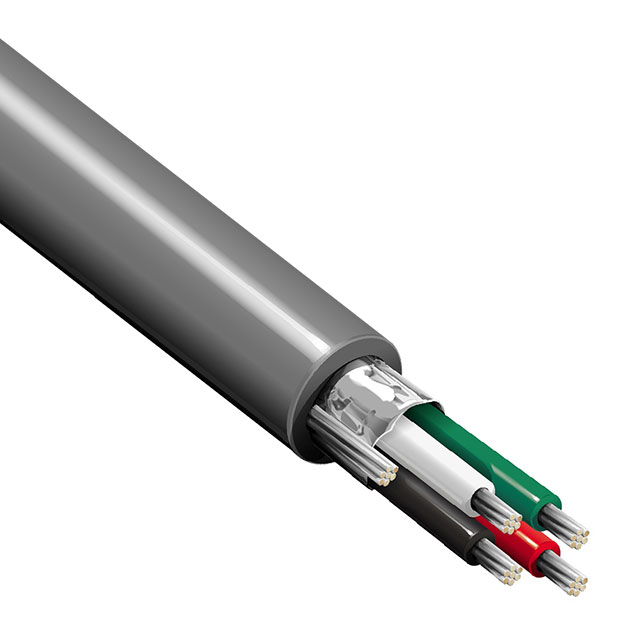

The 9418 060100 is a 100ft 4-conductor shielded Audio, Control and Instrumentation Cable with 18AWG stranded (19 x 30) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® aluminium foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
