2483406-2
ActiveTE Connectivity AMP Connectors
BNC M TO HDBNC M STR 75 OHM NFC94A 12 IN
2483406-2
ActiveTE Connectivity AMP Connectors
BNC M TO HDBNC M STR 75 OHM NFC94A 12 IN
Description
General part information
2483406-2

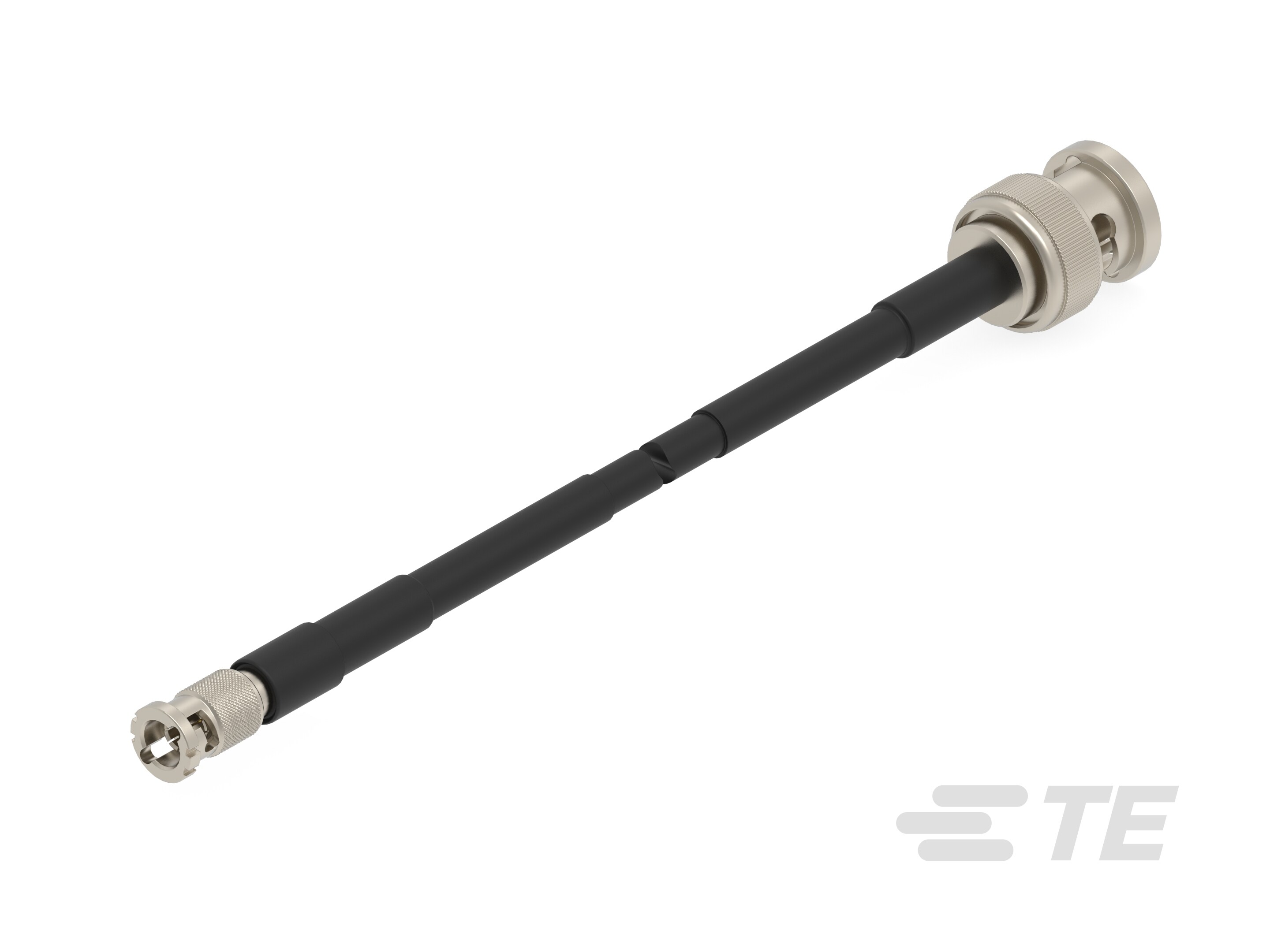

BNC to HDBNC Cable Assembly, .305 m [1 ft], Black Cable, 0 – 3 GHz, 75 ohm, PVC Jacket, 6.9 mm [.272 in] Diameter, BNC Plug End A, HDBNC Plug End B
Technical Specifications
Parameters and characteristics for this part
| Specification | 2483406-2 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Color | Black |
| Frequency - Max | 3 GHz |
| Length | 12.01 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | BNC, HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
