TRC1604P-0-469X-1.5
ActiveRemington Industries
TRAILER CBL 4COND 16AWG BLK 1.5'
TRC1604P-0-469X-1.5
ActiveRemington Industries
TRAILER CBL 4COND 16AWG BLK 1.5'
Description
General part information
TRC1604P-0-469X-1.5

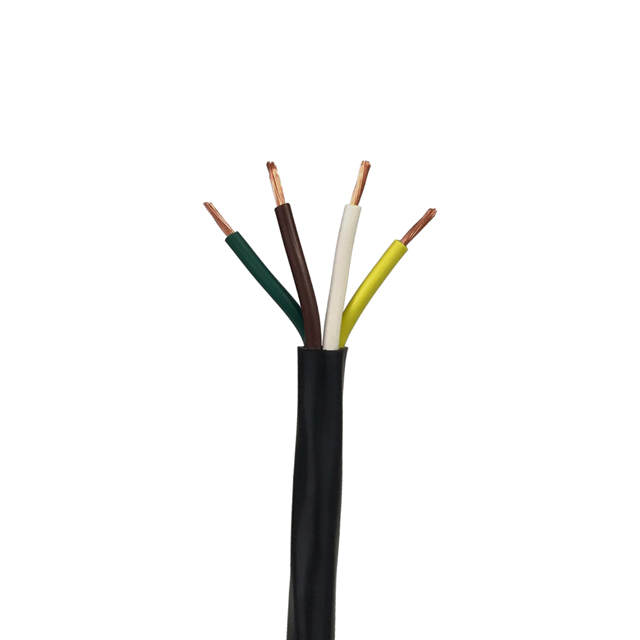

4 Conductor Trailer Cable Cable Black 16 AWG 1.50' (0.46m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TRC1604P-0-469X-1.5 |
|---|---|
| Cable Type | Trailer Cable |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 19 |
| Conductor Strand Diameter | 0.0113 in |
| Features | Abrasion Resistant, Oil Resistant |
| Jacket (Insulation) Diameter | 0.31 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Black |
| Length | 1.5 ft |
| Number of Conductors | 4 |
| Operating Temperature | 60 °C |
| Ratings | SAE, J1128 |
| Usage | Automotive Wiring |
| Voltage | 60 V |
| Wire Gauge | 16 AWG |
