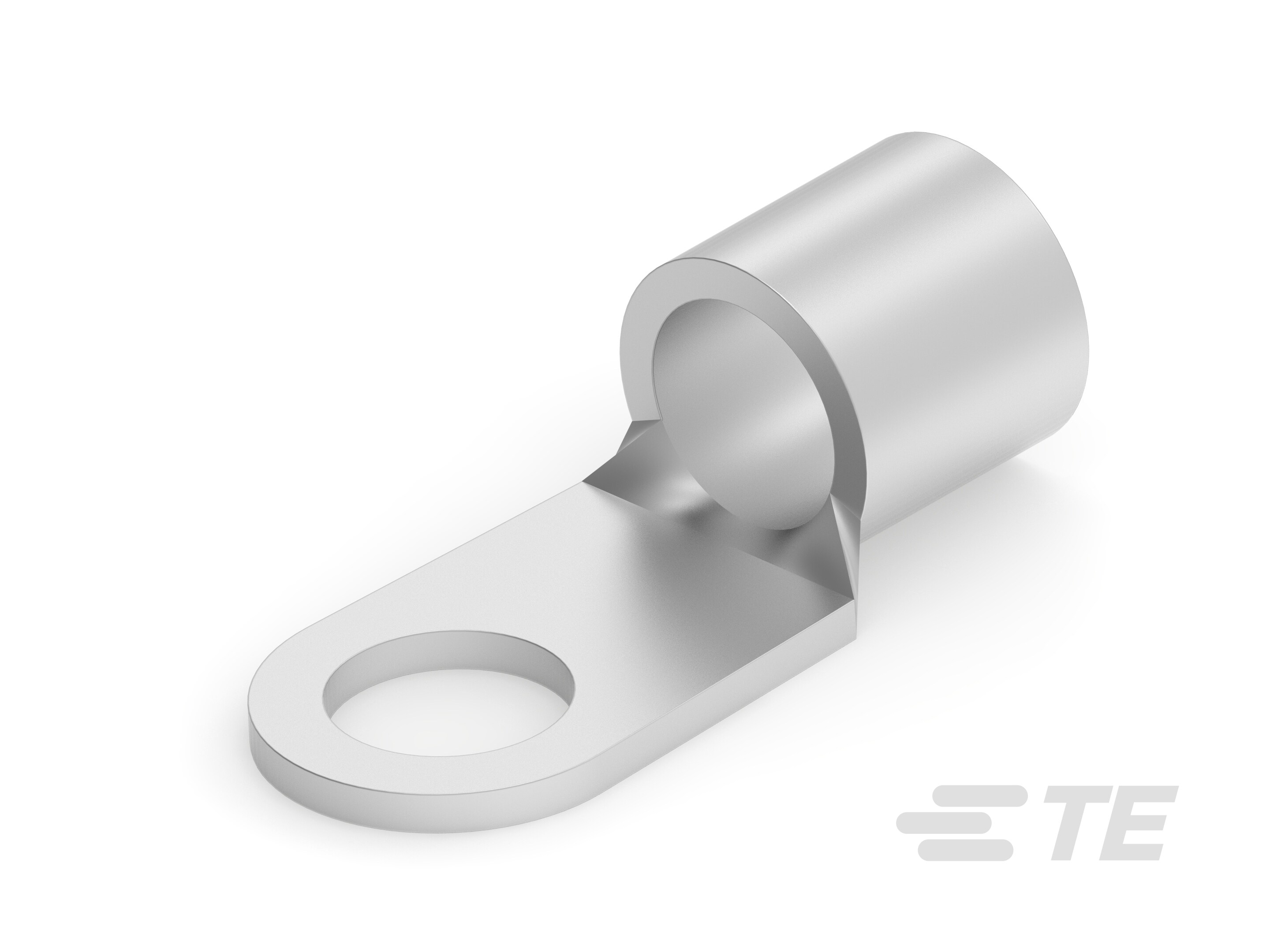

Specification	321600

Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Brazed Seam
Insulation	Non-Insulated
Length - Overall	1.527 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.375 in
Stud/Tab Size	3 Stud, 8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.07 in
Width - Outer Edges	0.625 in
Wire Gauge	2 AWG

3216 Series

Part	Insulation Diameter (Max)	Insulation Diameter (Min)	Tab Thickness	Tab Length	Tab Width	Insulation	Gender	Terminal Type	Length - Overall	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Termination	Contact Finish	Contact Material
TE Connectivity AMP Connectors 160915-5	0.091 in	0.055 in	0.032 in	0.303 in	0.25 in	Non-Insulated	Female	Standard	0.748 in	17 AWG	20.5 AWG	Free Hanging (In-Line)	Crimp	Tin	Brass
