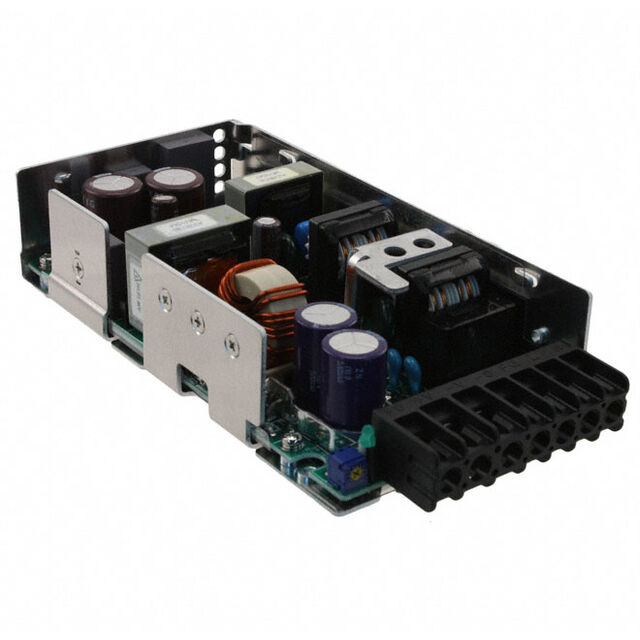

HWS150-12/HD
ObsoleteTDK Corporation
AC/DC CONVERTER 12V 150W
HWS150-12/HD
ObsoleteTDK Corporation
AC/DC CONVERTER 12V 150W
Description
General part information
HWS150-12/HD
Open Frame AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HWS150-12/HD |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 13 A |
| Efficiency | 83 % |
| Features | Universal Input, Remote Sense, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 3.23 in |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 1.46 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
