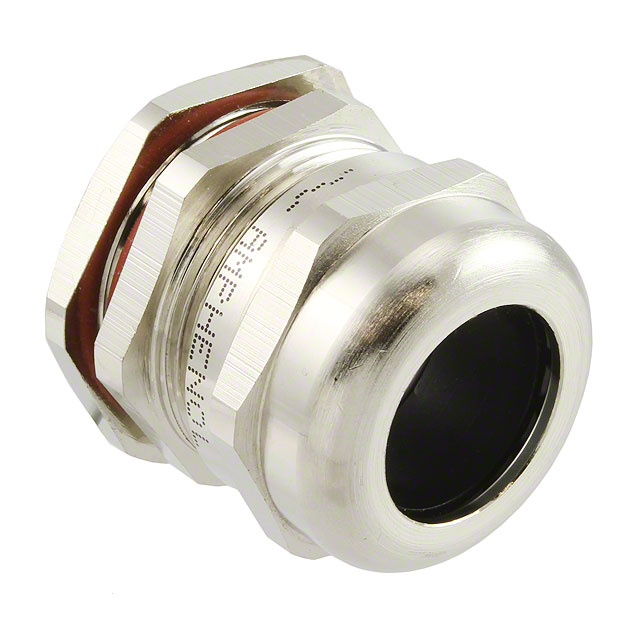

Specification	AIO-CSJPG21

Color	Silver
Includes	Panel Nut, Sealing Nut
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	0.709 in
Outside Cable Diameter (Min)	0.512 in
Thread Length	0.315 in
Thread Size	PG21
Type	Cable Gland

AIO-CS Series

Part	Material	Outside Cable Diameter (Max)	Includes	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection IP Rating	Ingress Protection Description	Color	Type	Thread Length	Outside Cable Diameter (Min)	Thread Diameter	Thread Pitch	Thread Size
Amphenol Aerospace Operations AIO-CSM22	Nylon Polyamide (PA)	0.551 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Black	Cable Gland	0.394 in	0.394 in	22 mm	1.5 mm
Amphenol Aerospace Operations AIO-CSJPG36	Brass	1.26 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.394 in	0.866 in			PG36
Amphenol Aerospace Operations AIO-CSM18	Nylon Polyamide (PA)	0.394 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Black	Cable Gland	0.354 in	0.197 in	18 mm	1.5 mm
Amphenol Aerospace Operations AIO-CSJM27	Brass	0.709 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.315 in	0.512 in	27 mm	2 mm
Amphenol Aerospace Operations AIO-CSM50	Nylon Polyamide (PA)	1.496 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Black	Cable Gland	0.551 in	1.26 in	50 mm	1.5 mm
Amphenol Aerospace Operations AIO-CSJPG11	Brass	0.394 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.276 in	0.197 in			PG11
Amphenol Aerospace Operations AIO-CSPG29	Nylon Polyamide (PA)	0.984 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Black Gray	Cable Gland	0.433 in	0.709 in			PG29
Amphenol Aerospace Operations AIO-CSPG13	Nylon Polyamide (PA)	0.472 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Black Gray	Cable Gland		0.236 in			PG13
Amphenol Aerospace Operations AIO-CSJM63	Brass	1.732 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.472 in	1.457 in	63 mm	1.5 mm
Amphenol Aerospace Operations AIO-CSM24	Nylon Polyamide (PA)	0.551 in	Panel Nut Sealing Nut	100 °C	-40 °C	IP68	Dust Tight Waterproof	Black	Cable Gland	0.394 in	0.394 in	24 mm	1.5 mm
