2350891-1
ActiveTE Connectivity AMP Connectors

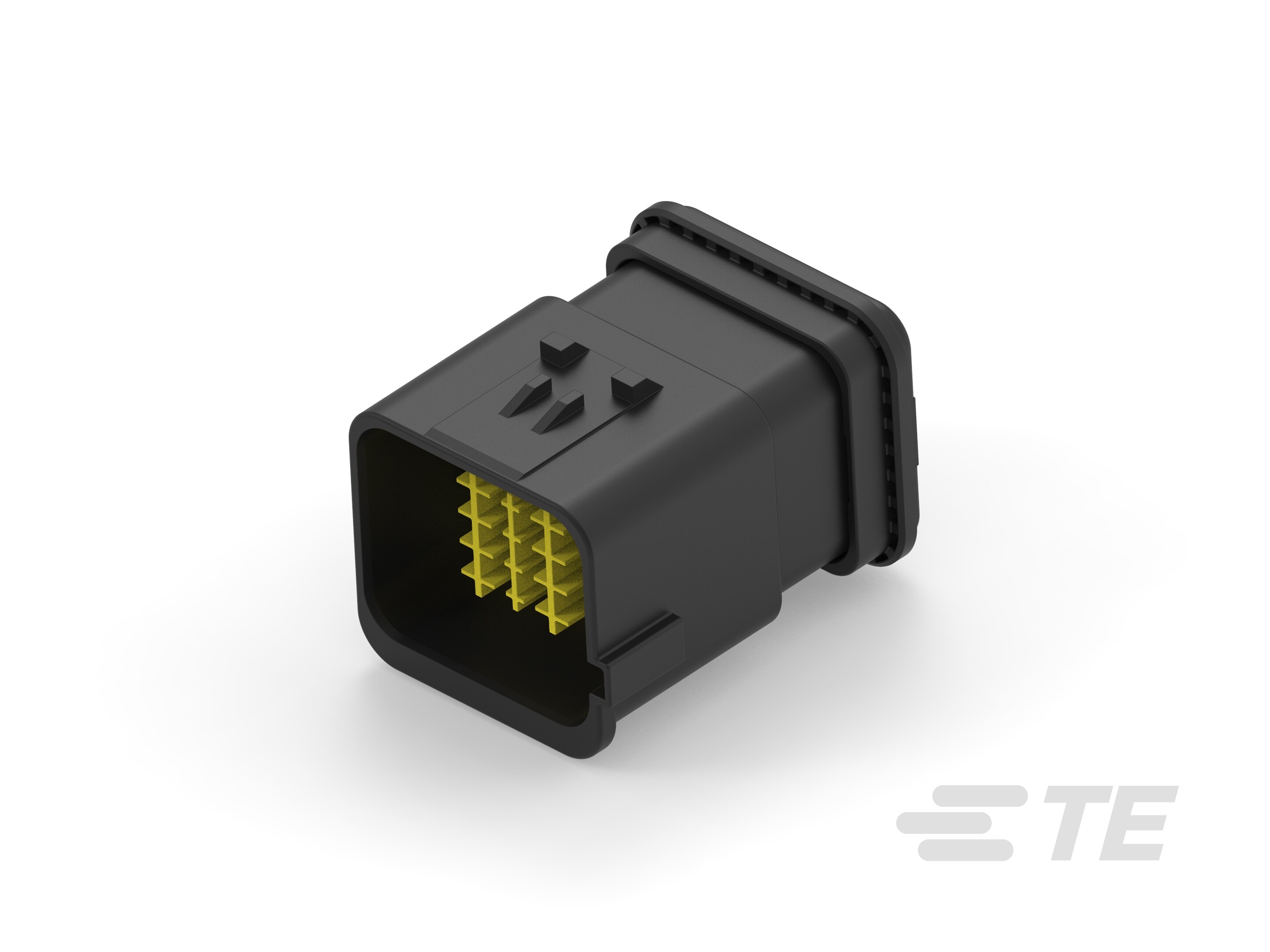

20POS,HYBRID,PIN HSG ASSY,SLD,COD A
2350891-1
ActiveTE Connectivity AMP Connectors
20POS,HYBRID,PIN HSG ASSY,SLD,COD A
Description
General part information
DEUTSCH NTSEAL Series
20 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.5 mm [.138 in] Centerline, Sealable, Black, Wire & Cable, Power, DEUTSCH NTSEAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 2350891-1 |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Cap (Cover), Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
