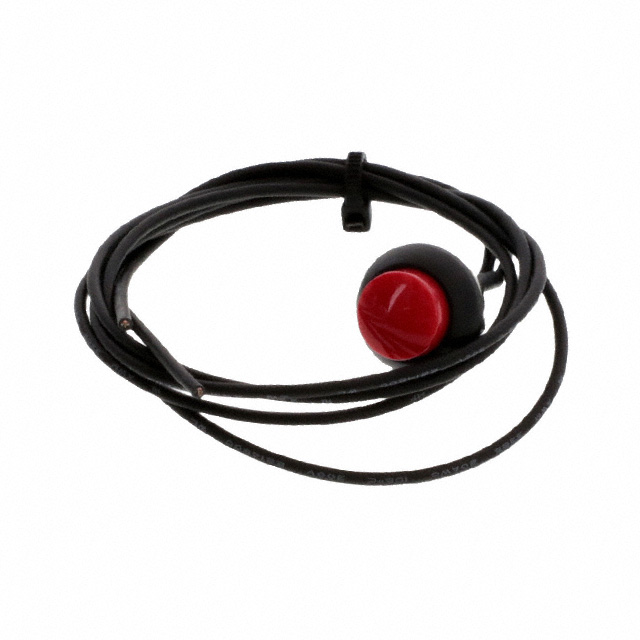

Specification	PB7B2HS3M1CAL00Y500

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Red
Current Rating	125 mA, 200 mA
Electrical Life (Cycles)	500000
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	13.6 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 V

ALCOSWITCH PB7 Series

Part	Color - Actuator/Cap	Switch Function	Current Rating	Actuator Type	Circuit	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Type	Mounting Type	Termination Style	Actuator Marking	Voltage Rating - DC	Ingress Protection IP Rating	Ingress Protection Description	Mechanical Life (Cycles)	Electrical Life (Cycles)
TE Connectivity AMP Connectors PB7B2HS7M1CAL00Y500	Blue	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Wire Leads	No Marking	50 V	IP68	Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2FM3M1CAL00	Red	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Solder Lug	No Marking	50 V	IP68	Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2RS5M1CAL00Y500	Yellow	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Wire Leads	No Marking	50 V	IP68	Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2FM7M1CAL00Y500	Blue	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Wire Leads	No Marking	50 V	IP68	Dust Tight Waterproof	1000000 Cycles	500000
TE Connectivity AMP Connectors PB7B2RS3M1CAL00Y500	Red	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Wire Leads	No Marking	50 V	IP68	Dust Tight Waterproof	1000000 Cycles	500000
TE Connectivity AMP Connectors PB7B2HS5M1CAL00Y500	Yellow	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Wire Leads	No Marking	50 V	IP68	Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2HS6M1CAL00	Green	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Solder Lug	No Marking	50 V	IP68	Dust Tight Waterproof	1000000 Cycles	500000
TE Connectivity AMP Connectors PB7B2RS7M1CAL00	Blue	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Solder Lug	No Marking	50 V	IP68	Dust Tight Waterproof
TE Connectivity AMP Connectors PB7B2HS2M1CAL00Y500	Black	On-Mom	125 mA 200 mA	Button Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Wire Leads	No Marking	50 V	IP68	Dust Tight Waterproof	1000000 Cycles	500000
TE Connectivity AMP Connectors PB7B2RS6M1CAL00	Green	On-Mom	125 mA 200 mA	Button Domed Round	SPST-NC	13.6 mm	Circular	125 V	85 °C	-30 °C	Standard	Front Panel Mount	Solder Lug	No Marking	50 V	IP68	Dust Tight Waterproof	1000000 Cycles	500000
