9190-5
ActiveKeystone Electronics
MACH SCREW BINDING COMBO #6-32
9190-5
ActiveKeystone Electronics
MACH SCREW BINDING COMBO #6-32
Description
General part information
9190-5

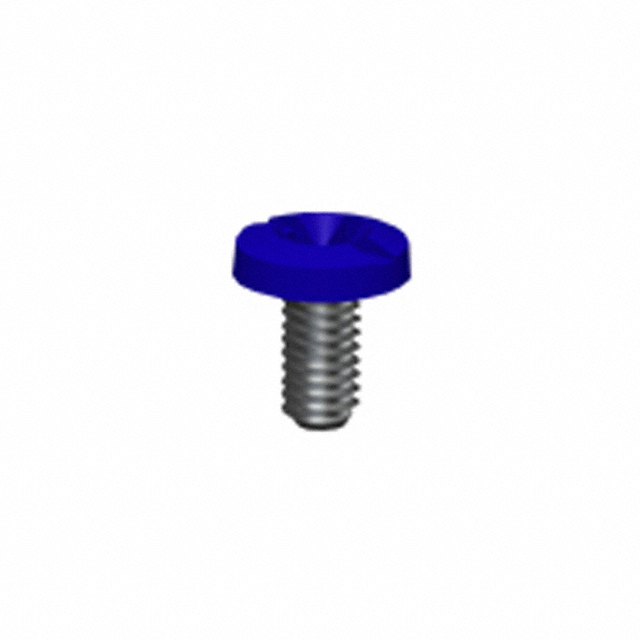

#6-32 Binding Head Machine Screw Combination Drive Brass
Technical Specifications
Parameters and characteristics for this part
| Specification | 9190-5 |
|---|---|
| Drive Type | Combination |
| Features | Colored Head |
| Head Diameter | 0.282 in |
| Head Height | 0.083 in |
| Length - Below Head | 0.25 in |
| Length - Overall | 0.333 in |
| Material | Brass |
| Plating | Nickel |
| Screw Head Type | Binding Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 6 mm |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
