Description
General part information

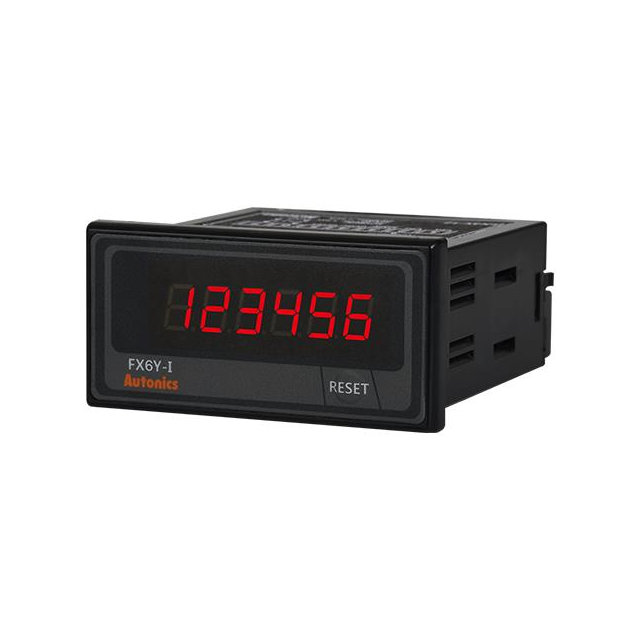

FX6Y-I2
Batch, Preset, Tachometer, Timer, Totalizer 24VAC, 24 ~ 48VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FX6Y-I2 |
|---|---|
| Count Rate (Options) | Multiple |
| Display Characters - Height | 0.315 in |
| Display Type | LED - Red Characters |
| Ingress Protection | IP40 |
| Input Type | Voltage |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 6 characters |
| Operating Mode | Down, Up |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Solid State |
| Panel Cutout Length | 68 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 31.5 mm |
| Reset | Front Panel, External |
| Termination Style | Screw Terminal |
| Time Format | Multiple |
| Type | Tachometer, Totalizer, Preset, Timer, Batch |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 24 VAC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Range 1 Maximum) | 24 VDC |
| Voltage - Supply (Range 1 Minimum) | 24 VAC |
| Voltage - Supply (Range 2 Maximum) | 48 VDC |
| Voltage - Supply (Range 2 Minimum) | 24 VAC |
| Voltage - Supply Maximum | 48 VDC |
| Voltage - Supply Minimum | 24 VAC |
