General part information

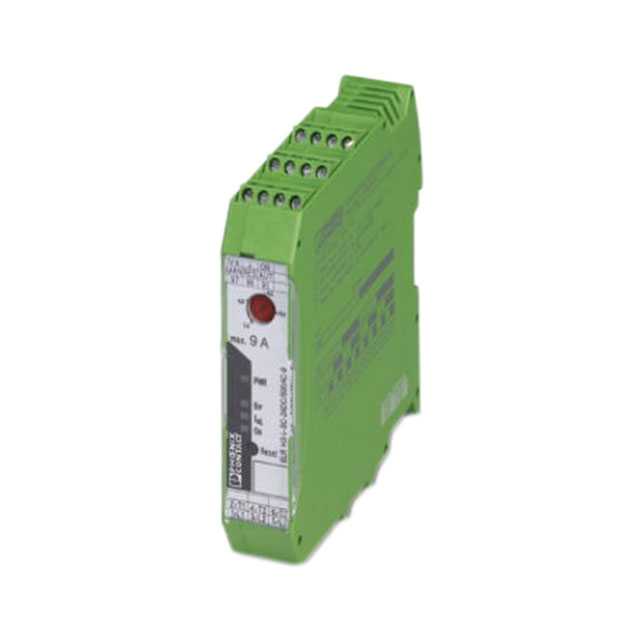

Terminal Block Interface Modules ELR H3-I-SC- 24DC/ 500AC-0,6
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2900542 |
|---|---|
| Control / Drive Type | Reversible, Motor Starter |
| Current - Output | 600 mA |
| Motor Type | AC Motor |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Type | Module |
| Voltage - Load [Max] | 550 V |
| Voltage - Load [Min] | 42 V |
| Voltage - Supply | 24 VDC |
| Wattage - Load | 2.5 W |
| Weight | 300.28 g |
| Weight | 0.662 lb |
Terminal Block Interface Modules ELR H3-I-SC- 24DC/ 500AC-0,6
| Part | Mounting Type | Current - Output | Control / Drive Type | Motor Type | Type | Voltage - Supply | Weight | Weight | Voltage - Load [Max] | Voltage - Load [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Wattage - Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900542 | DIN Rail | 600 mA | Motor Starter, Reversible | AC Motor | Module | 24 VDC | 300.28 g | 0.662 lb | 550 V | 42 V | 70 °C | -25 °C | 2.5 W |
