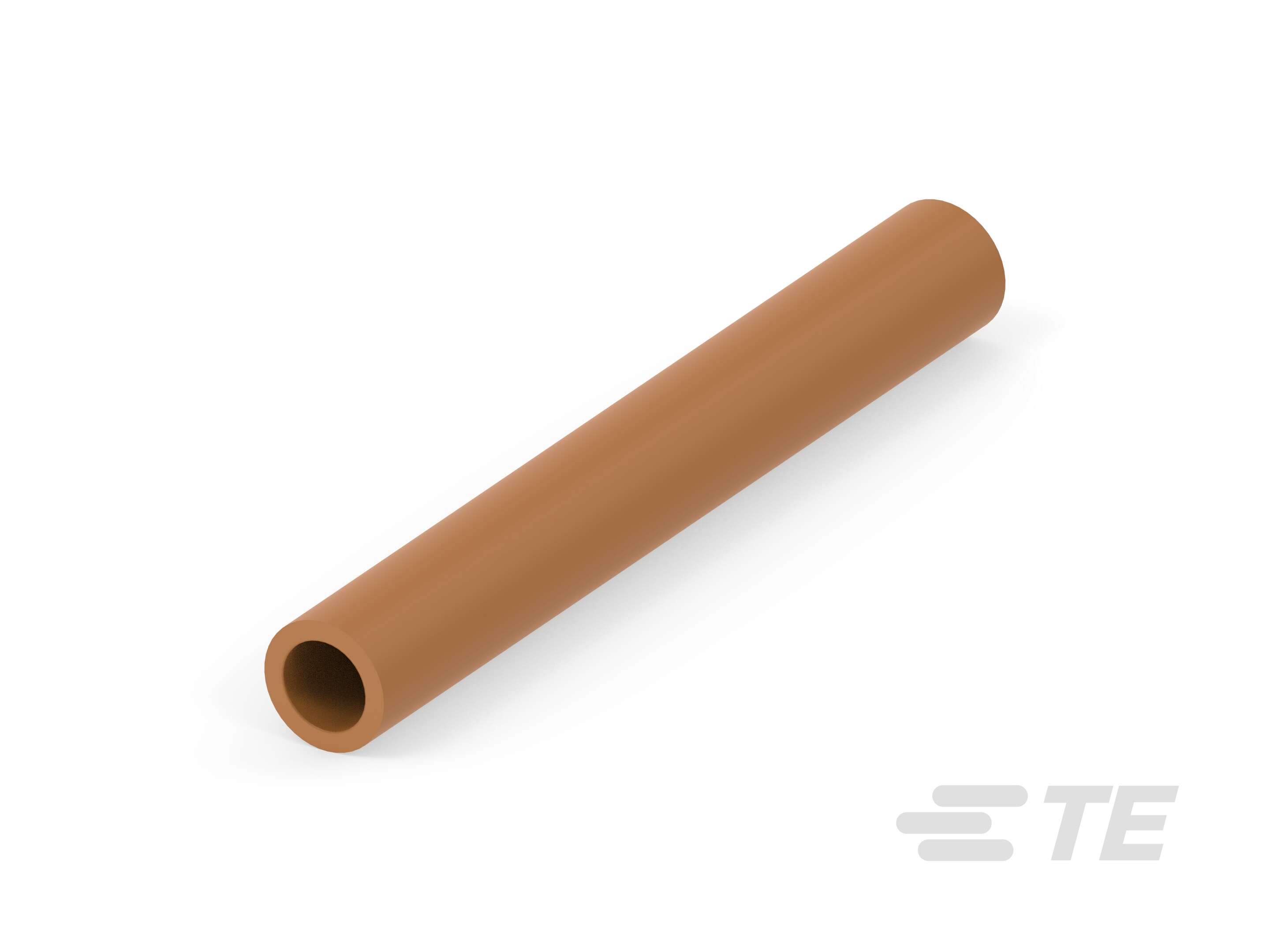

Specification	ATUM-6/2-1-SP

Color	Brown
Inner Diameter - Recovered	0.079 in
Inner Diameter - Supplied	0.236 in
Material	Irradiated, Polyolefin (PO)
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.012 in
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio	3
Storage/Refrigeration Temperature (Maximum)	95 °F
Storage/Refrigeration Temperature (Minimum)	32 °F
Type	Tubing, Semi-Flexible

RAYCHEM ATUM Series

...

Part	Inner Diameter - Recovered	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Color	Recovered Wall Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Features	Shelf Life	Shrinkage Ratio	Length	Type	Material	Shrink Temperature	Inner Diameter - Supplied	Length	Spool Size
TE Connectivity AMP Connectors NB10746001	0.315 in	95 °F	32 °F	Black	0.1 in	110 °C	-55 °C	Adhesive Lined Fluid Resistant	60 Months	4	0.279 ft	Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	1.26 in
TE Connectivity AMP Connectors NB10746001	0.315 in	95 °F	32 °F	Black	0.1 in	110 °C	-55 °C	Adhesive Lined Fluid Resistant	60 Months	4	0.279 ft	Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	1.26 in
TE Connectivity AMP Connectors NB09376001
TE Connectivity AMP Connectors NB10486001	0.039 in	95 °F	32 °F	Black	0.039 in	110 °C	-55 °C		60 Months	3		Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	0.118 in
TE Connectivity AMP Connectors ATUM-3/1-0-SP	0.039 in	95 °F	32 °F	Black	0.039 in	110 °C	-55 °C	Adhesive Lined Flame Retardant Fluid Resistant	60 Months	3		Semi-Flexible Tubing	Polyolefin Polyolefin (PO)	80 °C	0.118 in	Enter Number of Meters in Order Quantity	492.1 ft
TE Connectivity AMP Connectors NB08896001	0.118 in	95 °F	32 °F	Black		110 °C	-55 °C		60 Months	4		Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	0.472 in
TE Connectivity AMP Connectors ATUM-19/6-0-SP	0.236 in	95 °F	32 °F	Black	0.088 in	110 °C	-55 °C	Adhesive Lined Fluid Resistant	60 Months	3	12 in 492.1 ft	Semi-Flexible Tubing	Polyolefin Polyolefin (PO)	80 °C	0.75 in	Enter Number of Meters in Order Quantity
TE Connectivity AMP Connectors NB11876001	0.118 in	95 °F	32 °F	Black	0.055 in	110 °C	-55 °C	Adhesive Lined Fluid Resistant	60 Months	3	0.328 ft	Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	0.354 in
TE Connectivity AMP Connectors NB11926001	0.118 in	95 °F	32 °F	Black	0.055 in	110 °C	-55 °C	Adhesive Lined Fluid Resistant	60 Months	3	0.066 ft	Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	0.354 in
TE Connectivity AMP Connectors NB10916001	0.039 in	95 °F	32 °F	Black	0.1 in	110 °C	-55 °C	Adhesive Lined Fluid Resistant	60 Months	4	0.066 ft	Semi-Flexible Tubing	Irradiated Polyolefin (PO)	80 °C	0.157 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ENG_CD_ATUM_3_to_1_RATIO_STANDARD_SIZES_A1.pdf

Application Specification for General Purpose Dual Wall Heat Shrink Tubing Products

Datasheet

ATUM Tubing

ATUM Sleeving (Colours and Clear)
