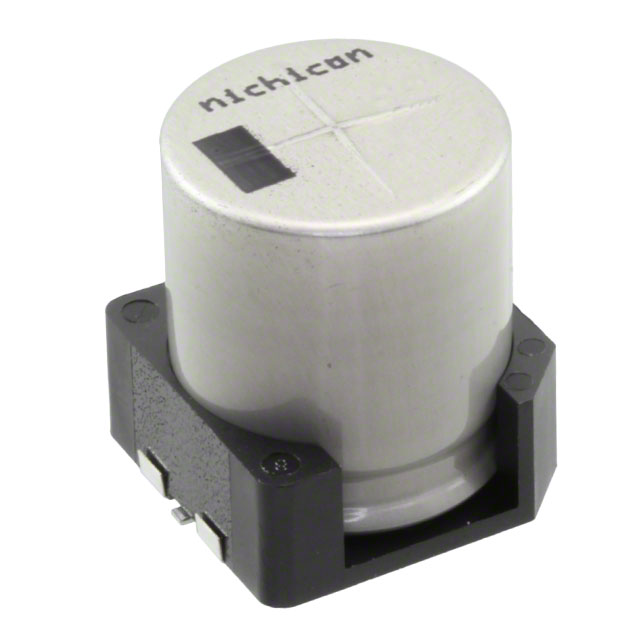

UUE1V102MRS1MS
1000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UUE1V102MRS1MS |
|---|---|
| Applications | Automotive |
| Capacitance | 1000 µF |
| Height - Seated (Max) | 0.886 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 1.4 A, 1.218 A |
| Size / Dimension Diameter | 0.787 in |
| Surface Mount Land Length | 0.831 in |
| Surface Mount Land Width | 0.831 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
