5-966444-4
ActiveTE Connectivity AMP Connectors

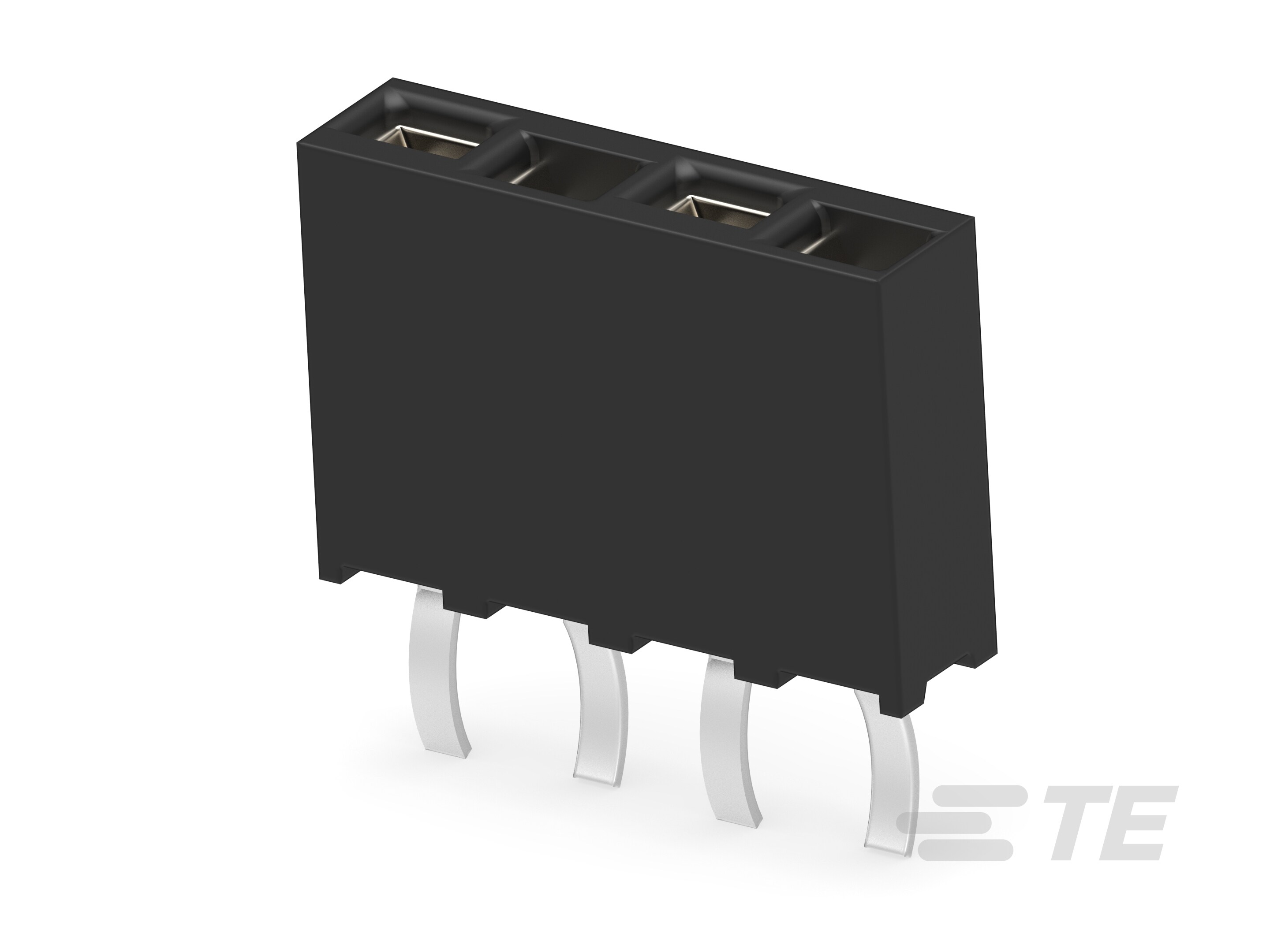

4P HV100 REC CON, SGL ROW, NON MAGNETIC
5-966444-4
ActiveTE Connectivity AMP Connectors
4P HV100 REC CON, SGL ROW, NON MAGNETIC
Description
General part information
5-966444-4
PCB Mount Receptacle, Vertical, Board-to-Board, 4 Position, 2.54 mm [.1 in] Centerline, Gold (Au), Through Hole - Solder, Black, Tray
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-966444-4 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 31.5 µin |
| Contact Type | Female Socket |
| Insulation Color | Green |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.1 in |
| Termination | Kinked Pin, Solder |
