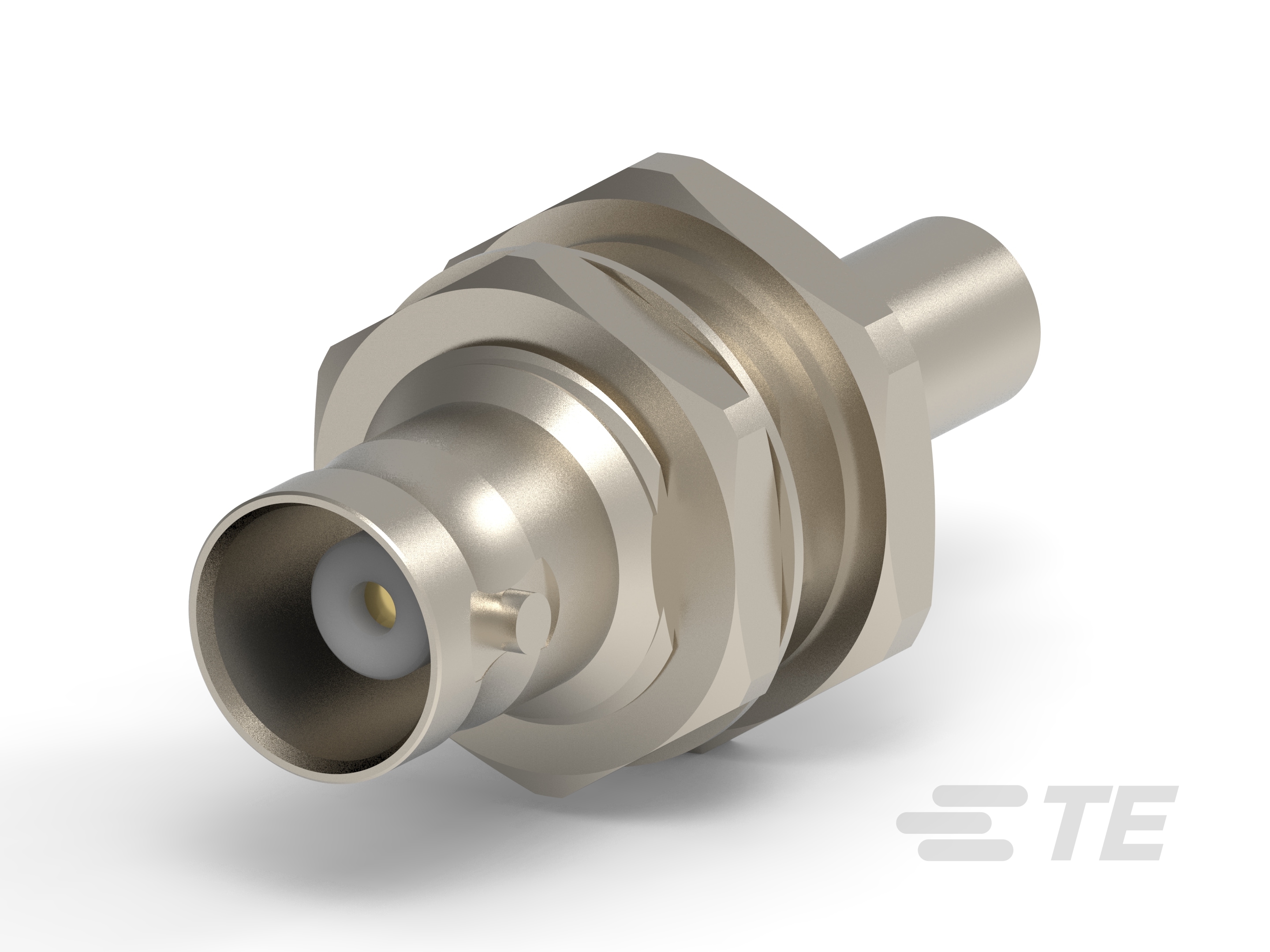

1-1337433-0
ActiveTE Connectivity AMP Connectors
RF COAX CONN, BNC JACK, 50 OHM, CABLE ROHS COMPLIANT: YES
1-1337433-0
ActiveTE Connectivity AMP Connectors
RF COAX CONN, BNC JACK, 50 OHM, CABLE ROHS COMPLIANT: YES
Description
General part information
1-1337433-0
BNC Connector, Jack, 50 ohm, Bayonet, 4 GHz, Cable-to-Panel, 1 Position, Sealable, Wire & Cable, Panel Mount, -65 – 165 °C [-85 – 329 °F], Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1337433-0 |
|---|---|
| Cable Group | RG-58C, Belden 9907 |
| Cable Group Current Rating | 141 A |
| Center Contact Material | Brass |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
