6001125
ActiveSemtech Corporation

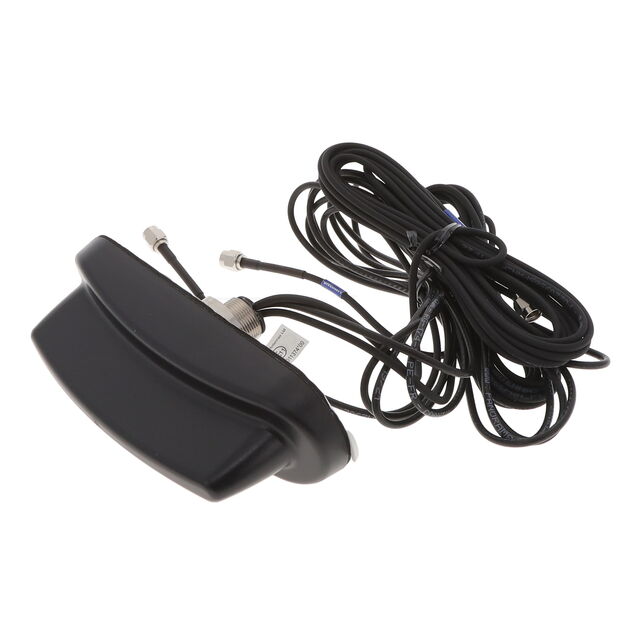

3IN1 PANEL ANTENNA - 2XLTE, GNSS
6001125
ActiveSemtech Corporation
3IN1 PANEL ANTENNA - 2XLTE, GNSS
Description
General part information
6001125
RF ANTENNA GNSS, LTE Panel Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 6001125 |
|---|---|
| Antenna Type | Panel |
| Applications | GNSS, LTE |
| Features | Cable, 3m |
| Frequency (Center/Band) | 2.249 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 3800 MHz |
| Frequency Range (Min) | 698 MHz |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation, Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
