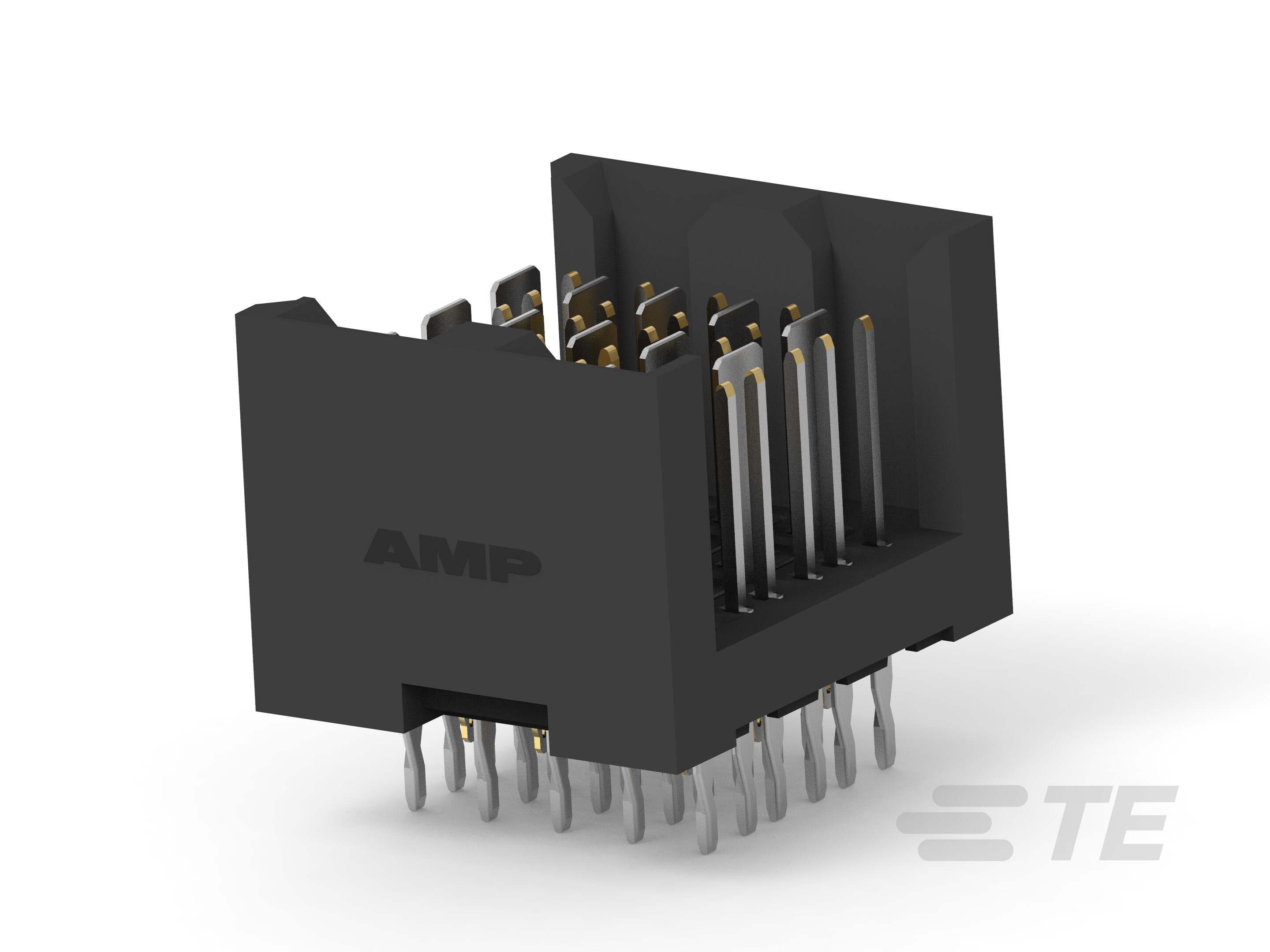

Specification	5120677-2

Connector Style	Dual Beam, Right Side
Connector Type	Blades, Male Pins, Header
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30 µin
Mounting Type	Through Hole
Number of Columns	5
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	6
Pitch	0.098 in
Termination	Press-Fit

Z-PACK HS3 Series

Part	Contact Finish	Number of Rows	Mounting Type	Pitch	Termination	Number of Columns	Contact Finish Thickness	Connector Style	Connector Usage	Number of Positions	Connector Type	Number of Positions Loaded	Voltage Rating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating
TE Connectivity AMP Connectors 5120795-1	Gold	10	Right Angle Through Hole	0.098 in	Press-Fit	5	30 µin	Dual Beam Left Side	Backplane	50	Female Sockets Receptacle	All	250 V	UL94 V-0	105 °C	-65 °C	1.15 A
TE Connectivity AMP Connectors 5120787-1	Gold	6	Right Angle Through Hole	0.098 in	Press-Fit	5	30 µin	Center Dual Beam	Backplane	30	Female Sockets Receptacle	All	250 V	UL94 V-0	105 °C	-65 °C	1.15 A
TE Connectivity AMP Connectors 5120672-1	Gold	10	Through Hole	0.098 in	Press-Fit	5	30 µin	Dual Beam Left Side	Backplane	50	Blades Header Male Pins	All
TE Connectivity AMP Connectors 5120658-1	Gold	10	Through Hole	0.098 in	Press-Fit	10	30 µin	Center Dual Beam	Backplane	100	Blades Header Male Pins	All
TE Connectivity AMP Connectors 5120662-1	Gold	10	Through Hole	0.098 in	Press-Fit	5	30 µin	Dual Beam Left Side	Backplane	50	Blades Header Male Pins	All	250 V	UL94 V-0	105 °C	-65 °C	1.15 A
TE Connectivity AMP Connectors 5120658-2	Gold	10	Through Hole	0.098 in	Press-Fit	10	30 µin	Center Dual Beam	Backplane	100	Blades Header Male Pins	All
TE Connectivity AMP Connectors 5120839-1	Gold	6	Through Hole	0.098 in	Press-Fit	5	30 µin	Dual Beam Right Side	Backplane	30	Blades Header Male Pins	All	250 V	UL94 V-0	105 °C	-65 °C	1.15 A
TE Connectivity AMP Connectors 5120792-1	Gold	10	Right Angle Through Hole	0.098 in	Press-Fit	5	30 µin	Dual Beam Right Side	Backplane	50	Female Sockets Receptacle	All
TE Connectivity AMP Connectors 5120754-1	Gold	10	Through Hole	0.098 in	Press-Fit	5	30 µin	Dual Beam Left Side	Backplane	50	Blades Header Male Pins	All	250 V	UL94 V-0	105 °C	-65 °C	1.15 A
TE Connectivity AMP Connectors 5120753-1	Gold	10	Through Hole	0.098 in	Press-Fit	10	30 µin	Center Dual Beam	Backplane	100	Blades Header Male Pins	All	250 V	UL94 V-0	105 °C	-65 °C	1.15 A
