1-2236266-2
ActiveTE Connectivity AMP Connectors
20POS,0.64 GENER. Y,REC HSG,ASSY,CODB
1-2236266-2
ActiveTE Connectivity AMP Connectors
20POS,0.64 GENER. Y,REC HSG,ASSY,CODB
Description
General part information
1-2236266-2

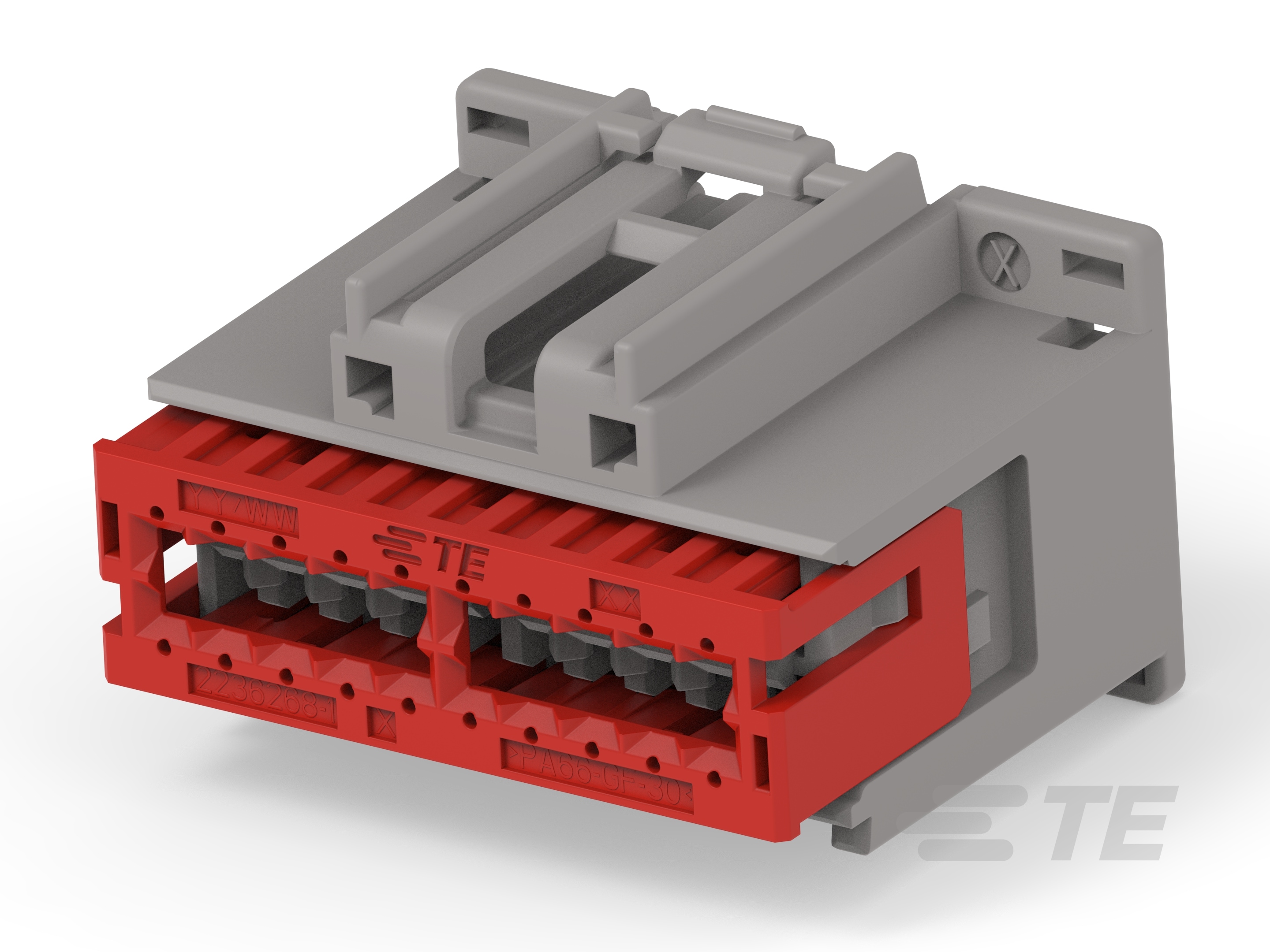

20 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.54 mm [.1 in] Centerline, Gray, Wire & Cable, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2236266-2 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
