CEB-1521
ActiveSame Sky (Formerly CUI Devices)

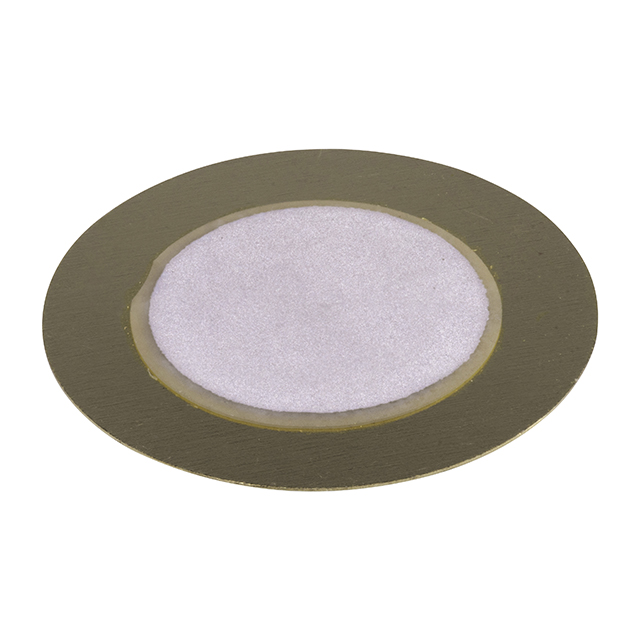

BUZZER ELEMENT STD 6KHZ 15MM
CEB-1521
ActiveSame Sky (Formerly CUI Devices)
BUZZER ELEMENT STD 6KHZ 15MM
Description
General part information
CEB-1521
6 kHz Standard Buzzer Element 30V p-p 0.591" Dia (15.00mm) 300 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | CEB-1521 |
|---|---|
| Capacitance | 15000 pF |
| Frequency | 6 kHz |
| Impedance | 300 Ohms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 0.591 in |
| Termination | None |
| Type | Standard |
| Voltage - Input (Max) | 30 V p-p |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
