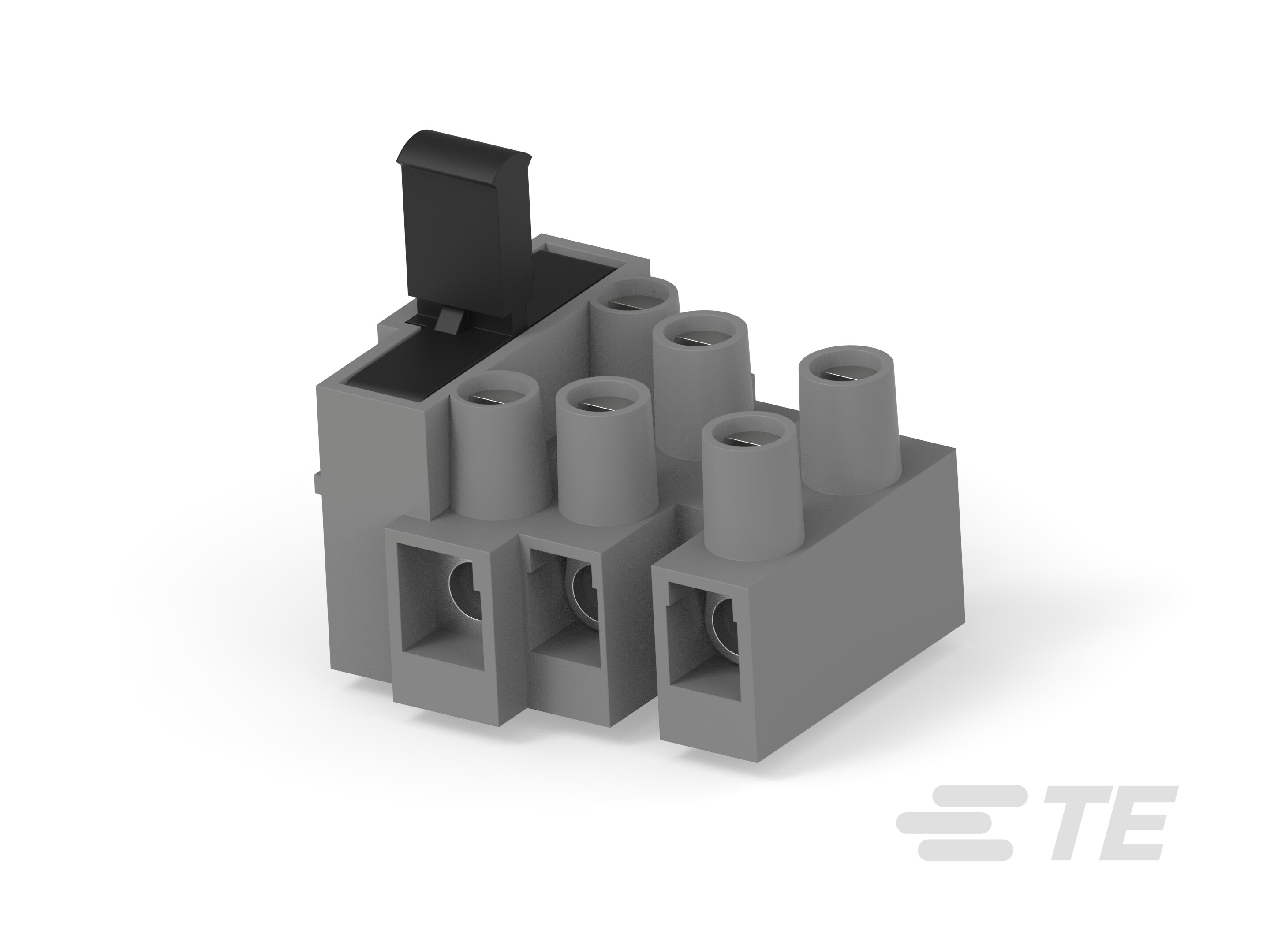

1776301-3
ActiveTE Connectivity AMP Connectors
503SI03=EUROPA T-BL,FUSE,10MM
1776301-3
ActiveTE Connectivity AMP Connectors
503SI03=EUROPA T-BL,FUSE,10MM
Description
General part information
1776301-3
3 Position Barrier Strip, Wire-to-Wire, 10 mm [.394 in] Centerline, 1 Row, 400 V, 22 – 12 AWG, .326 – 3.31 mm² Wire, Wire & Cable, Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1776301-3 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Gray |
| Current Rating | 16 A |
| Features | Fuse |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Pitch | 0.394 in |
| Terminal Block Type | Eurostyle Terminal Strip |
| Top Termination | Screws |
| Voltage Rating | 400 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
