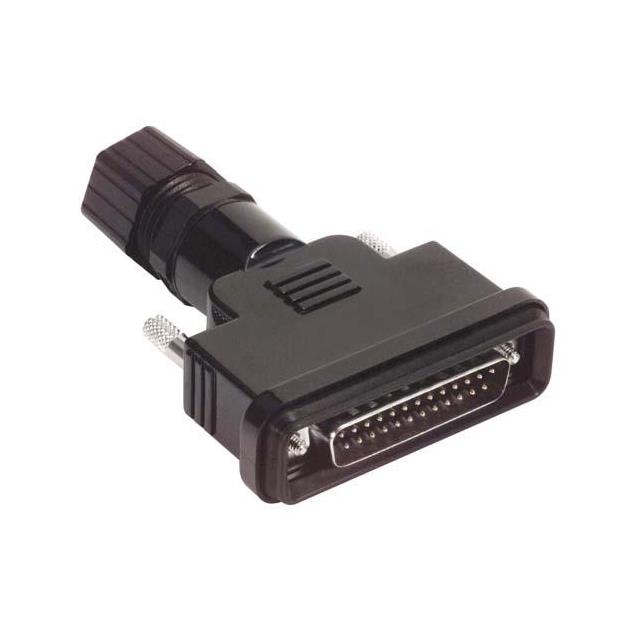

WPDB25P-KIT
ActivePasternack
CONN D-SUB PLUG 25POS IDC
WPDB25P-KIT
ActivePasternack
CONN D-SUB PLUG 25POS IDC
Description
General part information
WPDB25P-KIT
25 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | WPDB25P-KIT |
|---|---|
| Color | Black |
| Connector Layout | DB, B |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Type | Signal |
| Dielectric Material | Acrylonitrile Butadiene Styrene (ABS) |
| Features | Shielded, Backshell |
| Flange Feature | Mating Side, Female Screwlock |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Size | 3 |
| Termination | IDC, Discrete Wire |
