ANT-450-RHS-SMA
ActiveTE Connectivity AMP Connectors

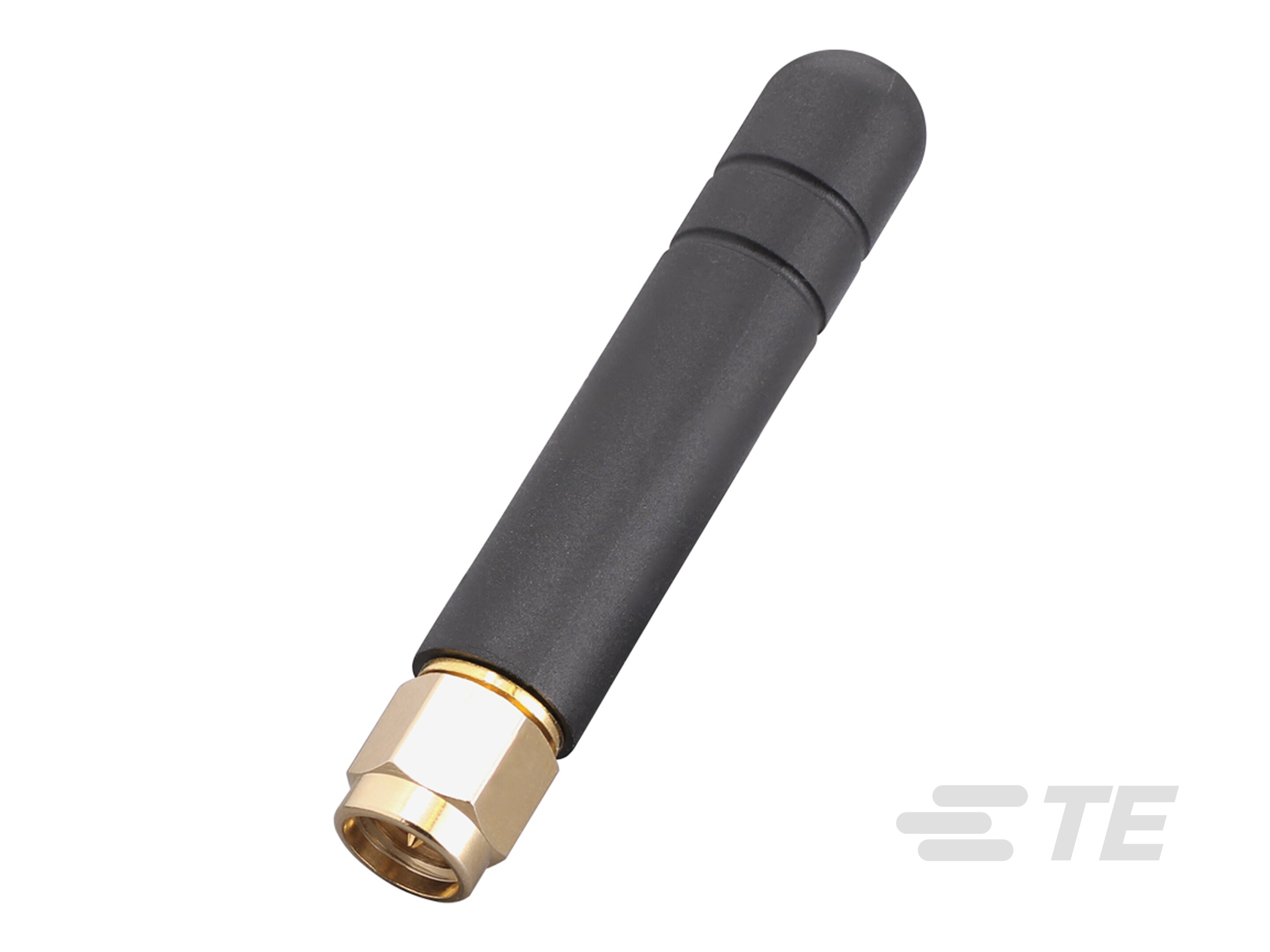

ANTENNA SHORT STRAIGHT 450-470MHZ SMA
ANT-450-RHS-SMA
ActiveTE Connectivity AMP Connectors
ANTENNA SHORT STRAIGHT 450-470MHZ SMA
Description
General part information
ANT-450-RHS-SMA
Terminal/Duck Antenna, Single Band, Cat-M/NB-IoT / Cellular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-450-RHS-SMA |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE |
| Frequency (Center/Band) | 460 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 470 MHz |
| Frequency Range (Min) | 450 MHz |
| Gain | -8.2 dBi |
| Height (Max) | 2.039 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2.1 |
