22203C226KAR1-EM
ActiveKYOCERA AVX
-EM , NON FLIGHT ENGINEERING MOD
22203C226KAR1-EM
ActiveKYOCERA AVX
-EM , NON FLIGHT ENGINEERING MOD
Description
General part information
22203C226KAR1-EM

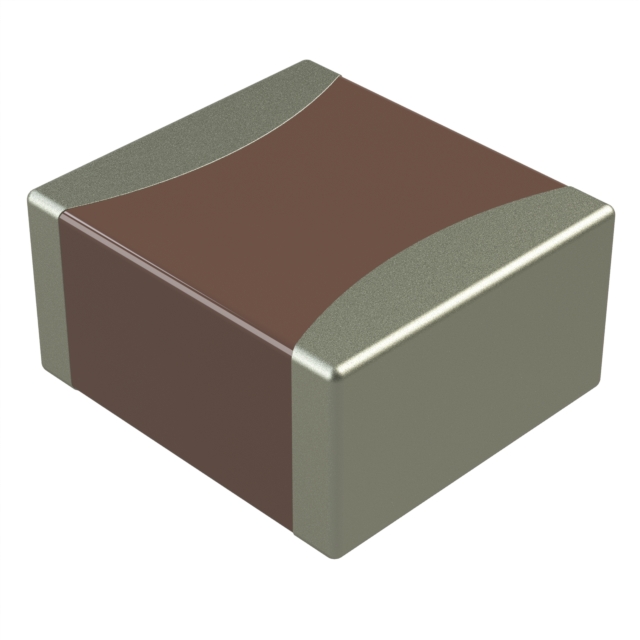

22 µF ±10% 25V Ceramic Capacitor X7R 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 22203C226KAR1-EM |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 22 µF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.11 in |
| Tolerance | 10 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
