DPE65B7
ActiveCONTACTOR, 65 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 37 KW
DPE65B7
ActiveCONTACTOR, 65 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 37 KW
Description
General part information
DPE65B7

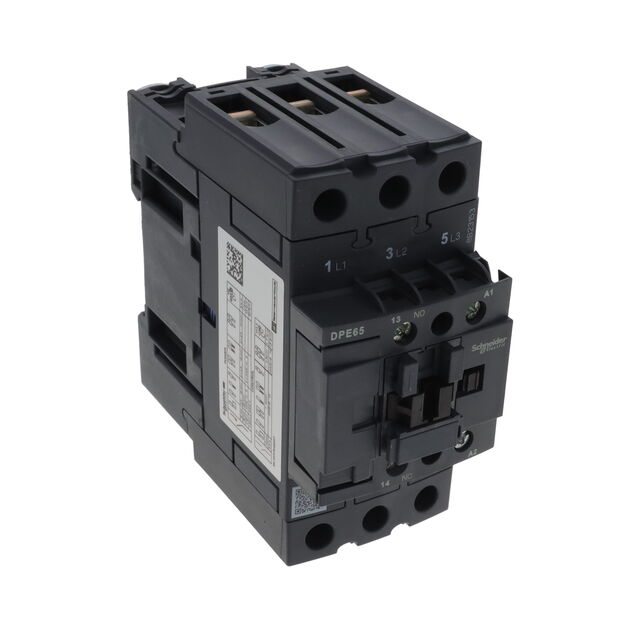

DPE65B7 is a Easy TeSys DPE, nonreversing, IEC contactor. It has 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (40HP at 480V). It provides a 24VAC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. It is approved by CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1.
Technical Specifications
Parameters and characteristics for this part
| Specification | DPE65B7 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 65 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 20.4 VDC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
