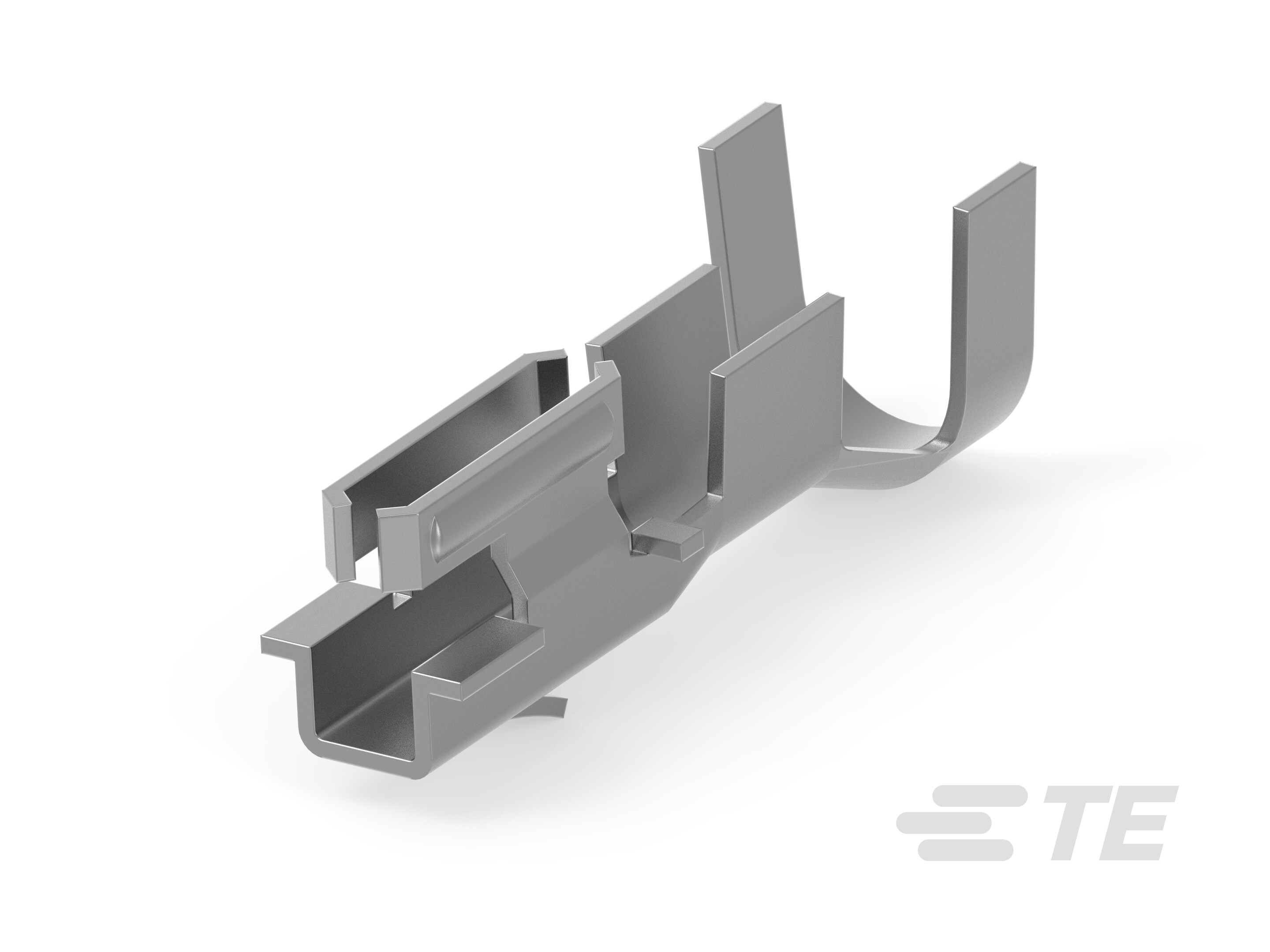

350650-1
ActiveTE Connectivity AMP Connectors
CONTACT, CRIMP, HIGH CURRENT COMMERCIAL CONNECTORS, 8 AWG, 12 AWG
350650-1
ActiveTE Connectivity AMP Connectors
CONTACT, CRIMP, HIGH CURRENT COMMERCIAL CONNECTORS, 8 AWG, 12 AWG
Description
General part information
350650-1
Hermaphroditic Contact, Tin (Sn), 600 VAC, 600 VDC, 12 – 8 AWG, 3 – 8 mm² Wire, Crimp, Phosphor Bronze, Power, -55 – 85 °C [-67 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 350650-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Type | Power |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
1654742_HOUSEHOLD_APPLIANCES_RAST5
Commercial High Current, High Voltage, LGH Connector
ENG_CD_350650_H.pdf
High Current Commercial (HC4) Connectors
High Current Connector Contacts
High Current Connector Contact
High Current, High Voltage Commercial LGH Connector
Datasheet
Drawing EN
3D Product Image EN
Technical Data Sheet EN
Manufacturer Catalogue EN
