1-2371337-0
ActiveTE Connectivity AMP Connectors

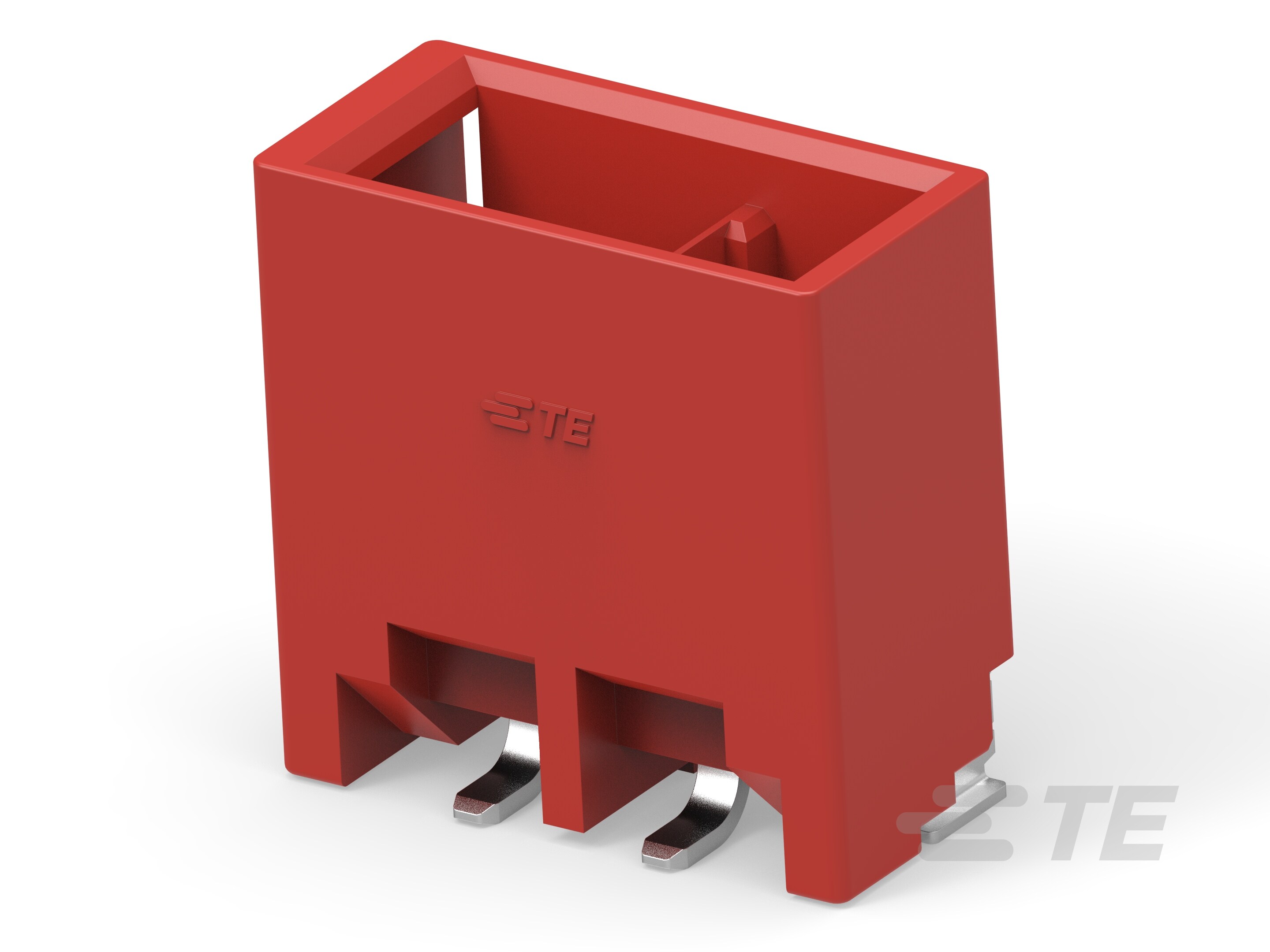

RECTANGULAR POWER CONNECTOR, RED, KEY J, 2 CONTACTS, POWER KEY 5.0 SERIES, PCB MOUNT
1-2371337-0
ActiveTE Connectivity AMP Connectors
RECTANGULAR POWER CONNECTOR, RED, KEY J, 2 CONTACTS, POWER KEY 5.0 SERIES, PCB MOUNT
Description
General part information
1-2371337-0
PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin (Sn), Surface Mount, Power, Red, Power Key 5.0
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2371337-0 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Insulation Color | Red |
| Insulation Height | 0.593 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.197 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board |
| Termination | Solder |
| Voltage Rating | 300 VAC/DC |
