CA-RBPNFBA010
ActivePasternack
CA195 RP-BNC PLUG/NF BKHD 10'
CA-RBPNFBA010
ActivePasternack
CA195 RP-BNC PLUG/NF BKHD 10'
Description
General part information
CA-RBPNFBA010

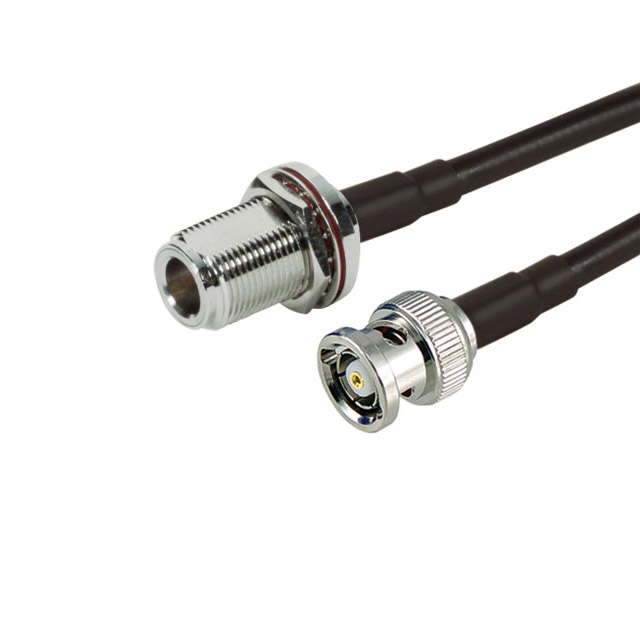

Cable Assembly Coaxial RP-BNC to N-Type LMR 195 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-RBPNFBA010 |
|---|---|
| 1st Connector | RP-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 195 |
| Color | Black |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | RP-BNC, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
