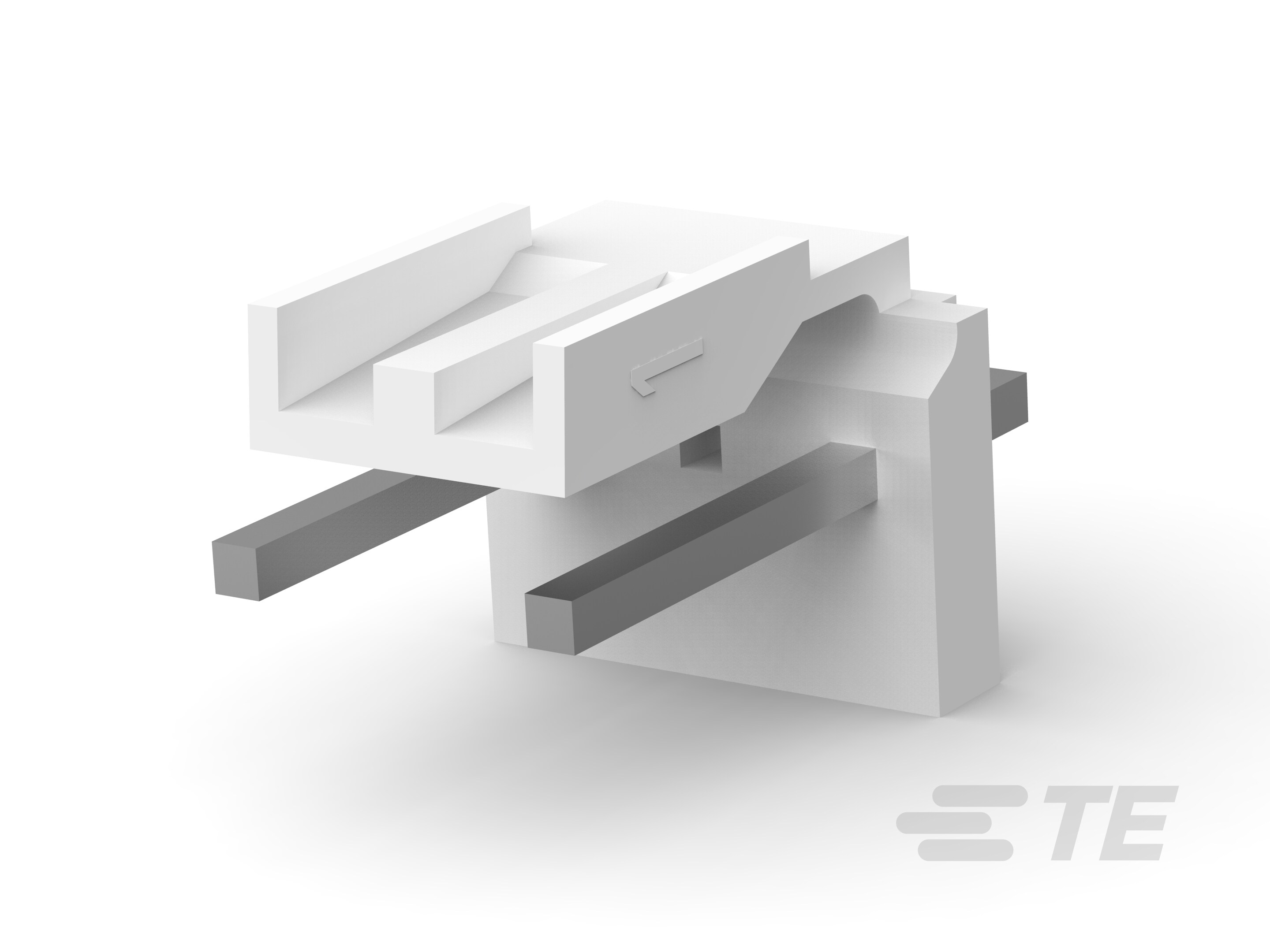

Specification	2232554-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 µin
Contact Length - Mating	0.45 in
Contact Length - Post	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.545 in
Insulation Material	Polyester, Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loaded	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.7 in
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V
