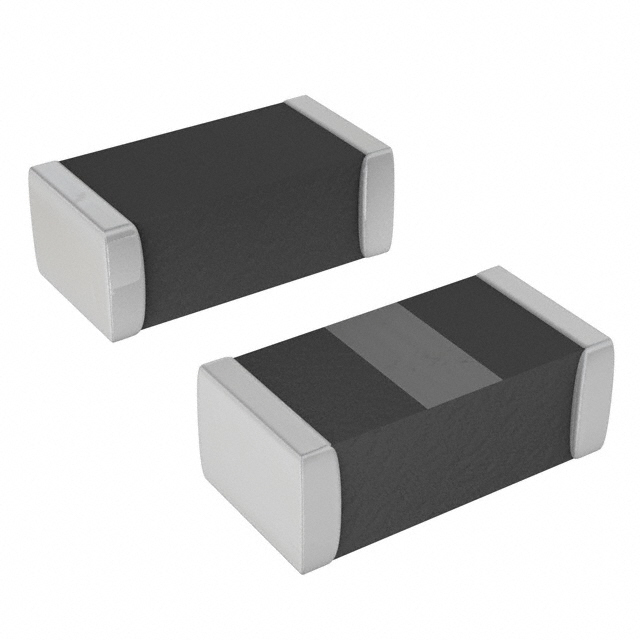

1810BP07B0200001T
ActiveJohanson Technology Inc.
RF FILTER BAND PASS 1.81GHZ 0402
1810BP07B0200001T
ActiveJohanson Technology Inc.
RF FILTER BAND PASS 1.81GHZ 0402
Description
General part information
1810BP07B0200001T
1.81GHz Center Frequency Band Pass RF Filter (Radio Frequency) 200MHz Bandwidth 2dB 0402 (1005 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 1810BP07B0200001T |
|---|---|
| Bandwidth | 200 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1.81 GHz |
| Height (Max) | 0.017 in |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Package Name | 0402 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
