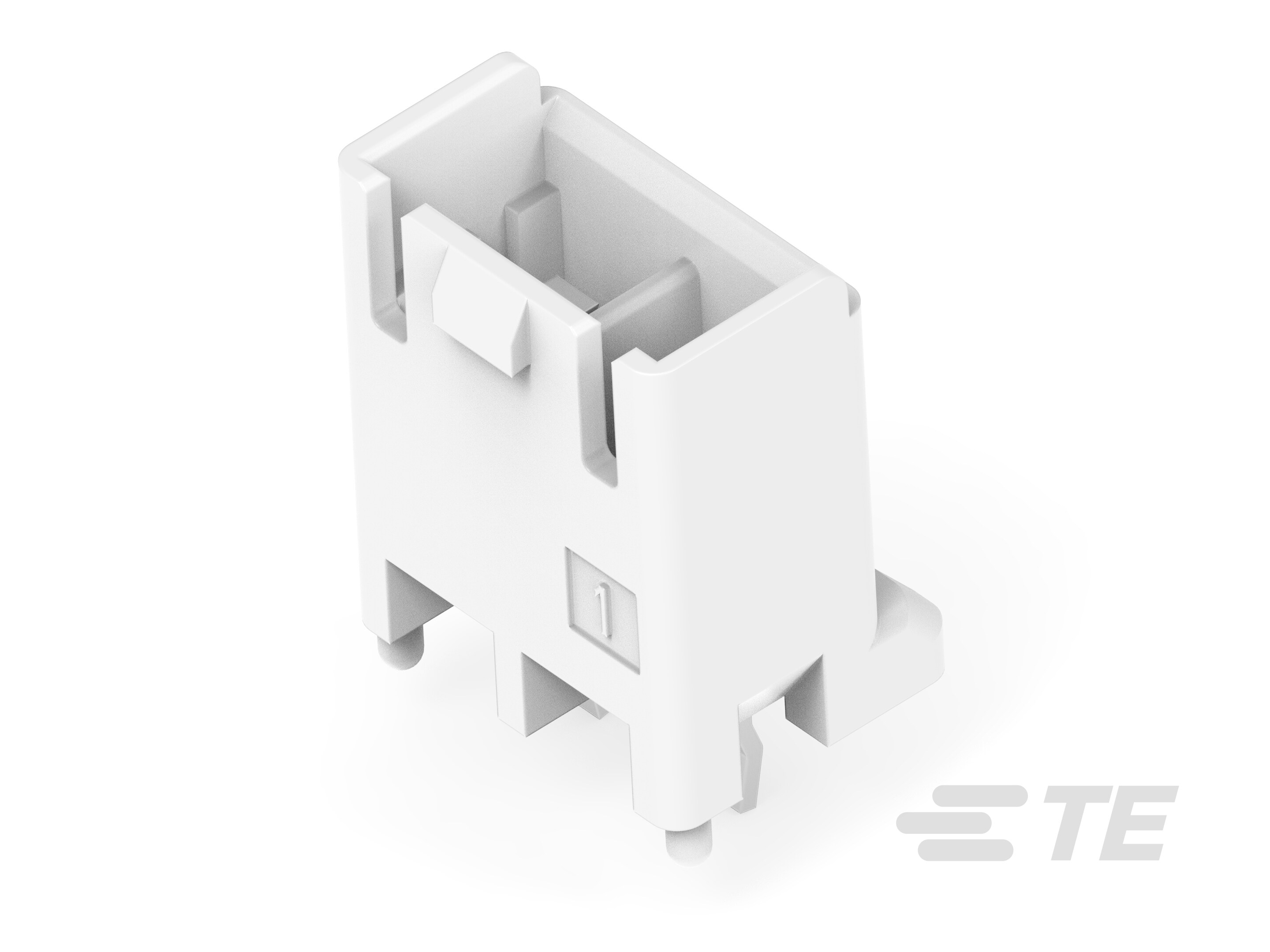

5.0 PK CONN 2P HDR ASSY HIGH CURRENT-1376382-6

1376382-6

Active
TE Connectivity AMP Connectors

5.0 PK CONN 2P HDR ASSY HIGH CURRENT

Find alt
5.0 PK CONN 2P HDR ASSY HIGH CURRENT-1376382-6

1376382-6

Active
TE Connectivity AMP Connectors

5.0 PK CONN 2P HDR ASSY HIGH CURRENT

Find alt

Description

General part information

1376382-6

PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Power Key 5.0

Technical Specifications

Parameters and characteristics for this part

Specification1376382-6
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating39.4 µin
Contact Length - Post0.138 in
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeTab
Current Rating15 A
Fastening TypeLocking Ramp
FeaturesBoard Guide
Insulation ColorNatural
Insulation Height0.555 in
Insulation MaterialNylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.197 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating300 VAC/DC
