Description
General part information

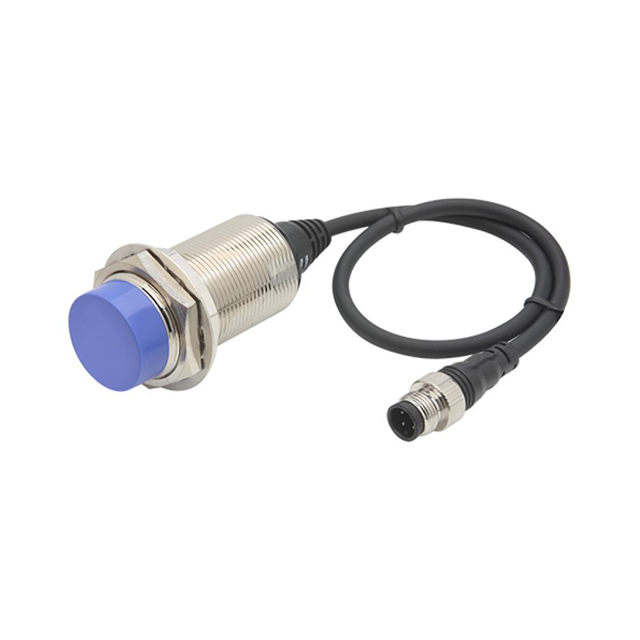

PRDWL30-25DN
SENSOR PROX INDUCTIVE 25MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDWL30-25DN |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 100 Hz |
| Sensing Distance | 0.984 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable with Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
