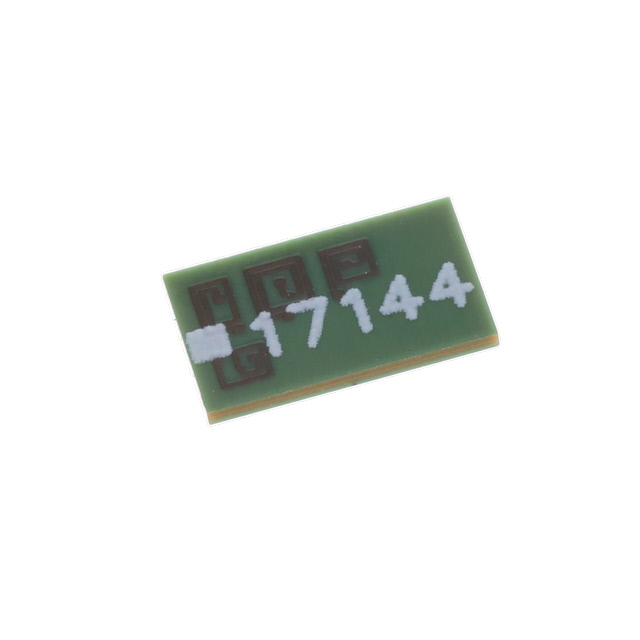

HF0AA2420A700
ActiveKYOCERA AVX
RF FILT HIGH PASS 2.42GHZ 16ULGA
HF0AA2420A700
ActiveKYOCERA AVX
RF FILT HIGH PASS 2.42GHZ 16ULGA
Description
General part information
HF0AA2420A700
2.42GHz Frequency High Pass RF Filter (Radio Frequency) Bandwidth 1.2dB 16-ULGA
Technical Specifications
Parameters and characteristics for this part
| Specification | HF0AA2420A700 |
|---|---|
| Filter Type | High Pass |
| Frequency | 2.42 GHz |
| Height (Max) | 0.022 in |
| Insertion Loss | 1.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 16-ULGA |
| Size / Dimension Length | 0.259 in |
| Size / Dimension Width | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
