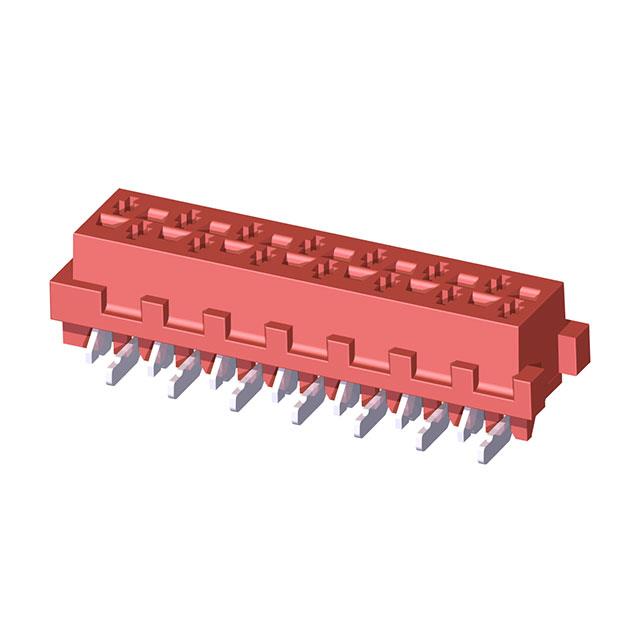

CA3208M1300
ActiveCvilux USA
1.27MM (.050") FEMALE TOP ENTRY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCA32xxM13xx Drawing
CA3208M1300
ActiveCvilux USA
1.27MM (.050") FEMALE TOP ENTRY
Deep-Dive with AI
DocumentsCA32xxM13xx Drawing
Technical Specifications
Parameters and characteristics for this part
| Specification | CA3208M1300 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Polarizing Key |
| Insulation Color | Red |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 230 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| 10 | $ 0.38 | |||
| 100 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.38 | |||
| 100 | $ 0.29 | |||
| Tape & Reel (TR) | 800 | $ 0.23 | ||
| 1600 | $ 0.21 | |||
| 2400 | $ 0.20 | |||
| 4000 | $ 0.19 | |||
| 5600 | $ 0.19 | |||
| 8000 | $ 0.18 | |||
| 20000 | $ 0.16 | |||
| 40000 | $ 0.15 | |||
Description
General part information
CA3208M1300
8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
