B82144A2476J000
LTBEPCOS - TDK Electronics
FIXED IND 47MH 30MA 230 OHM TH
B82144A2476J000
LTBEPCOS - TDK Electronics
FIXED IND 47MH 30MA 230 OHM TH
Description
General part information
B82144A2476J000

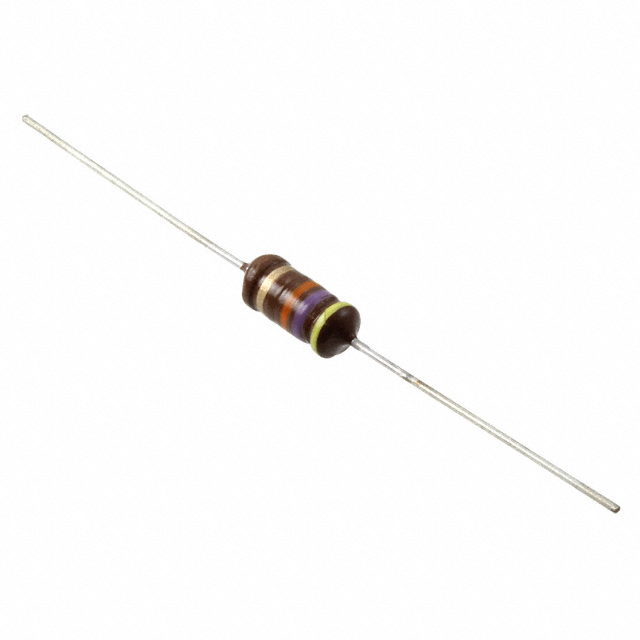

47 mH Unshielded Drum Core, Wirewound Inductor 30 mA 230Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144A2476J000 |
|---|---|
| Current Rating | 30 mA |
| DC Resistance (DCR) (Max) | 230 Ohm |
| Frequency - Self Resonant | 180 kHz |
| Inductance | 47 mH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 40 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.472 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
