1SNL608310R0000

Active

TE Connectivity AMP Connectors

C6/8.ST1

Find alt

Alpha

1SNL608310R0000

Active

TE Connectivity AMP Connectors

C6/8.ST1

Find alt

Alpha

Description Series Pricing CAD Documents

Description

General part information

ENTRELEC SNACOMPACT Series

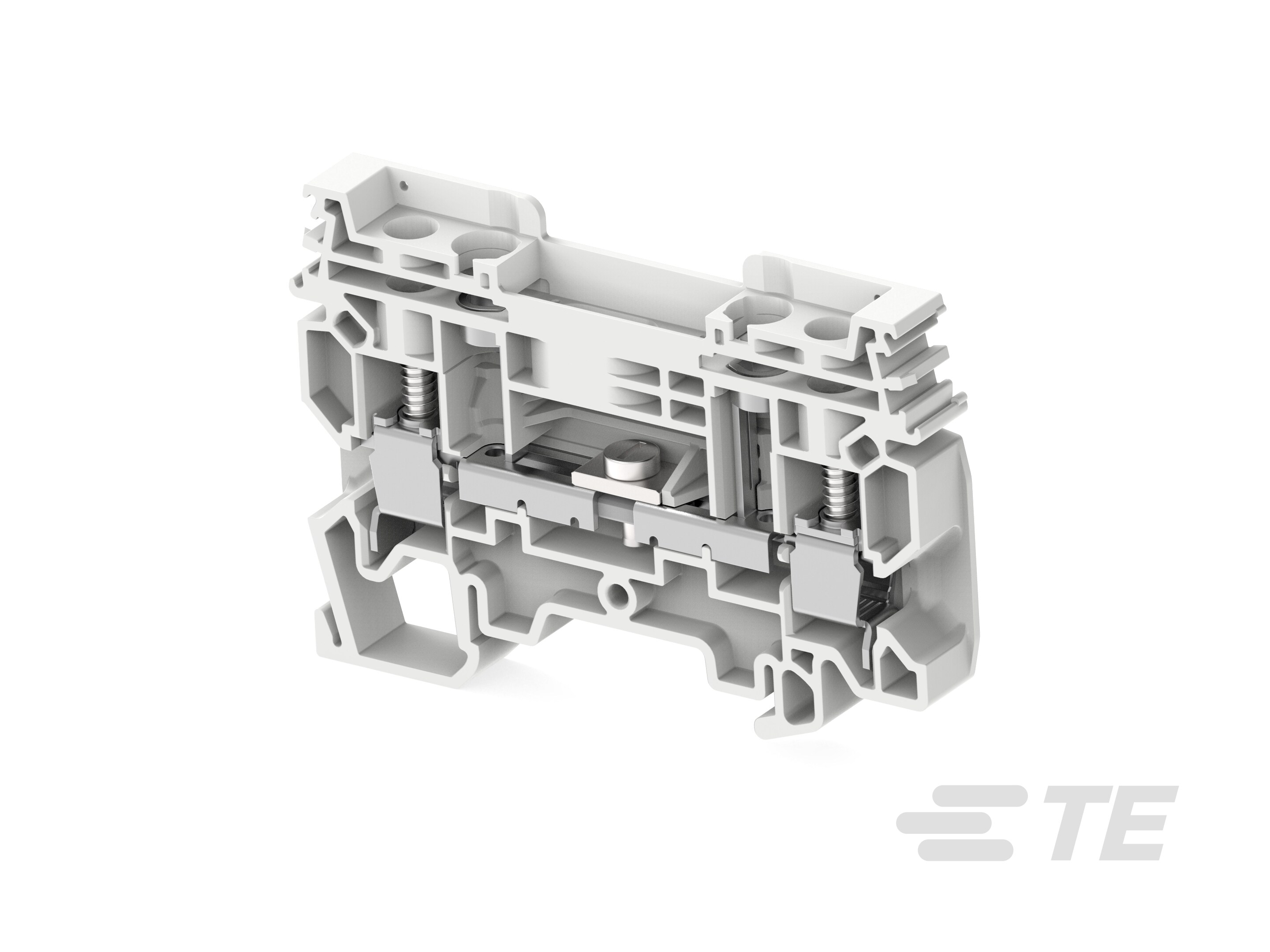

Screw Clamp Terminal Block, Disconnect, Gray, 8 mm [.31 in] Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 630 VAC, 8 AWG, ENTRELEC SNACOMPACT

ENTRELEC SNACOMPACT Series

Part	Color	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Type	Termination Style	Terminal Width	Current - UL	Number of Levels	Voltage - IEC	Current - IEC	Voltage - UL	Disconnect Type	Fuse Type
TE Connectivity AMP Connectors 1SNL605010R0000	Gray	16 mm²	0.2 mm²	24 AWG	12 AWG	2	Feed Through	Screw	5 mm	20 A	1	1000 V	24 A	600 V
TE Connectivity AMP Connectors 1SNL612010R0000
TE Connectivity AMP Connectors 1SNL606150R0000	Green Yellow	16 mm²	0.2 mm²	24 AWG	10 AWG	2	Earth Ground	Screw	6 mm		1
TE Connectivity AMP Connectors 1SNL605150R0000	Green Yellow	16 mm²	0.2 mm²	24 AWG	12 AWG	2	Earth Ground	Screw	5 mm		1
TE Connectivity AMP Connectors 1SNL606011R0000	Gray	16 mm²	0.2 mm²	24 AWG	10 AWG	2	Feed Through	Screw	6 mm	25 A	1	1000 V	24 A	600 V
TE Connectivity AMP Connectors 1SNL900201R0000
TE Connectivity AMP Connectors 1SNL608410R0000	Gray	6 mm²	0.5 mm²	22 AWG	12 AWG	2	Disconnect	Screw	8 mm	15 A	1	630 V	6.3 A	600 V	Fuse Lever	5mm x 20mm 5mm x 25mm
TE Connectivity AMP Connectors 1SNL908310R0000
TE Connectivity AMP Connectors 1SNL900101R0000
TE Connectivity AMP Connectors 1SNL612010R0000	Gray	16 mm²	0.5 mm²	20 AWG	4 AWG	2	Feed Through	Screw	12 mm	80 A	1	1000 V	76 A	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

SNACOMPACT TERMINAL BLOCKS SCREW CLAMP TECHNOLOGY

C6/8.ST1
