Description
General part information
LMR-400-UF-1METER

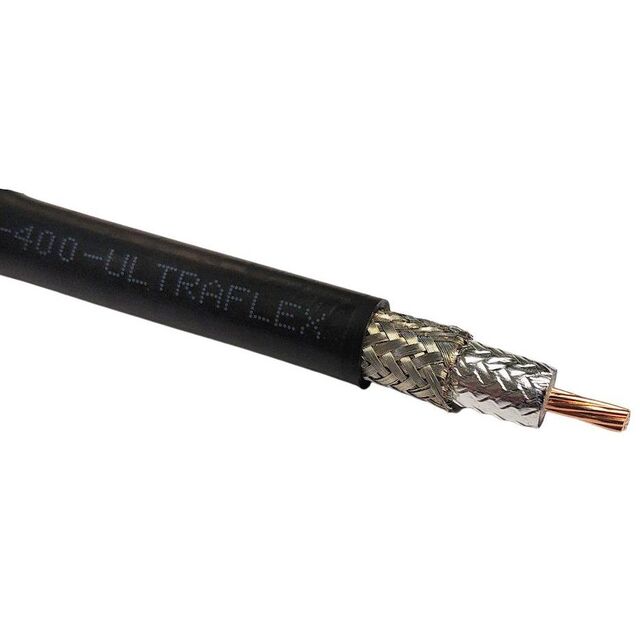

Coaxial Cable LMR-400 3.3' (1.00m) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-UF-1METER |
|---|---|
| Cable Group | LMR-400 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.285 in |
| Dielectric Material | Cellular (Foam) Polyethylene (Cellular FPE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.405 in |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Length | 3.3 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Velocity of Propagation (VoP) | 84 % |
