TAX38725102-150
ActiveTE Connectivity AMP Connectors
RPC-M12X-8MS-15.0SH-M12X-8MS-PUR
TAX38725102-150
ActiveTE Connectivity AMP Connectors
RPC-M12X-8MS-15.0SH-M12X-8MS-PUR
Description
General part information
TAX38725102-150

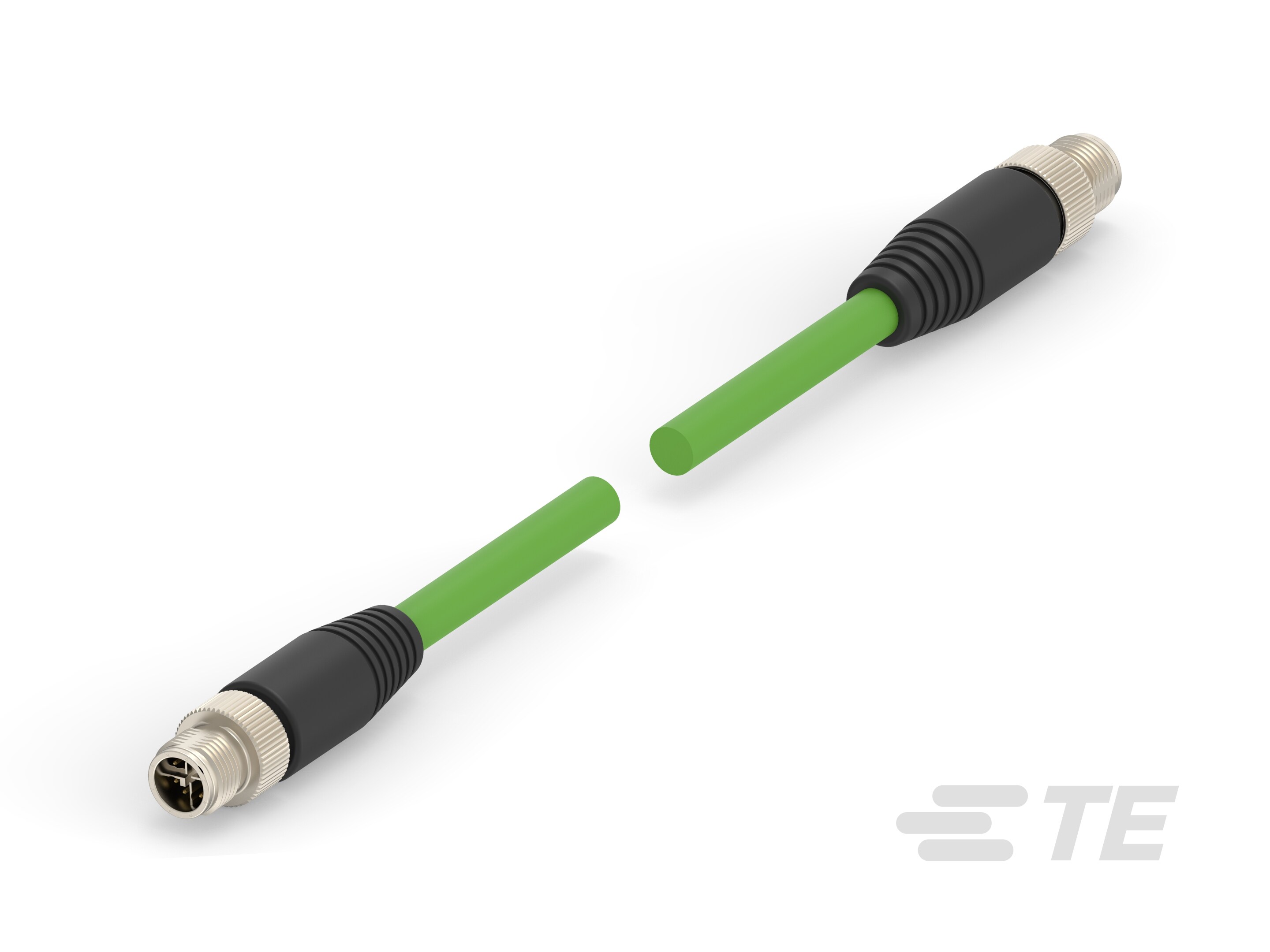

M12 Cable Assembly, 8 Position, Cable Assembly Length 15 m [49.2 ft], Industrial Ethernet, Ethernet, X Code, M12 Plug End A, M12 Plug End B, Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | TAX38725102-150 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | X |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Gender | Male Pins |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 8 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Orientation | X |
| 2nd Connector Shell Size - Insert (Code) | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Green |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 49.2 ft |
| Shielding | Shielded |
| Usage | Industrial Environments, Cat6a |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
