KIT,HDP-20,PLUG,SIZE 3, 25 POS-749805-9

749805-9

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR, DB25, 25 CONTACTS, PLUG, CRIMP, DB, AMPLIMITE HDP-20 SERIES, STEEL BODY

Find alt
KIT,HDP-20,PLUG,SIZE 3, 25 POS-749805-9

749805-9

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR, DB25, 25 CONTACTS, PLUG, CRIMP, DB, AMPLIMITE HDP-20 SERIES, STEEL BODY

Find alt

Description

General part information

749805-9

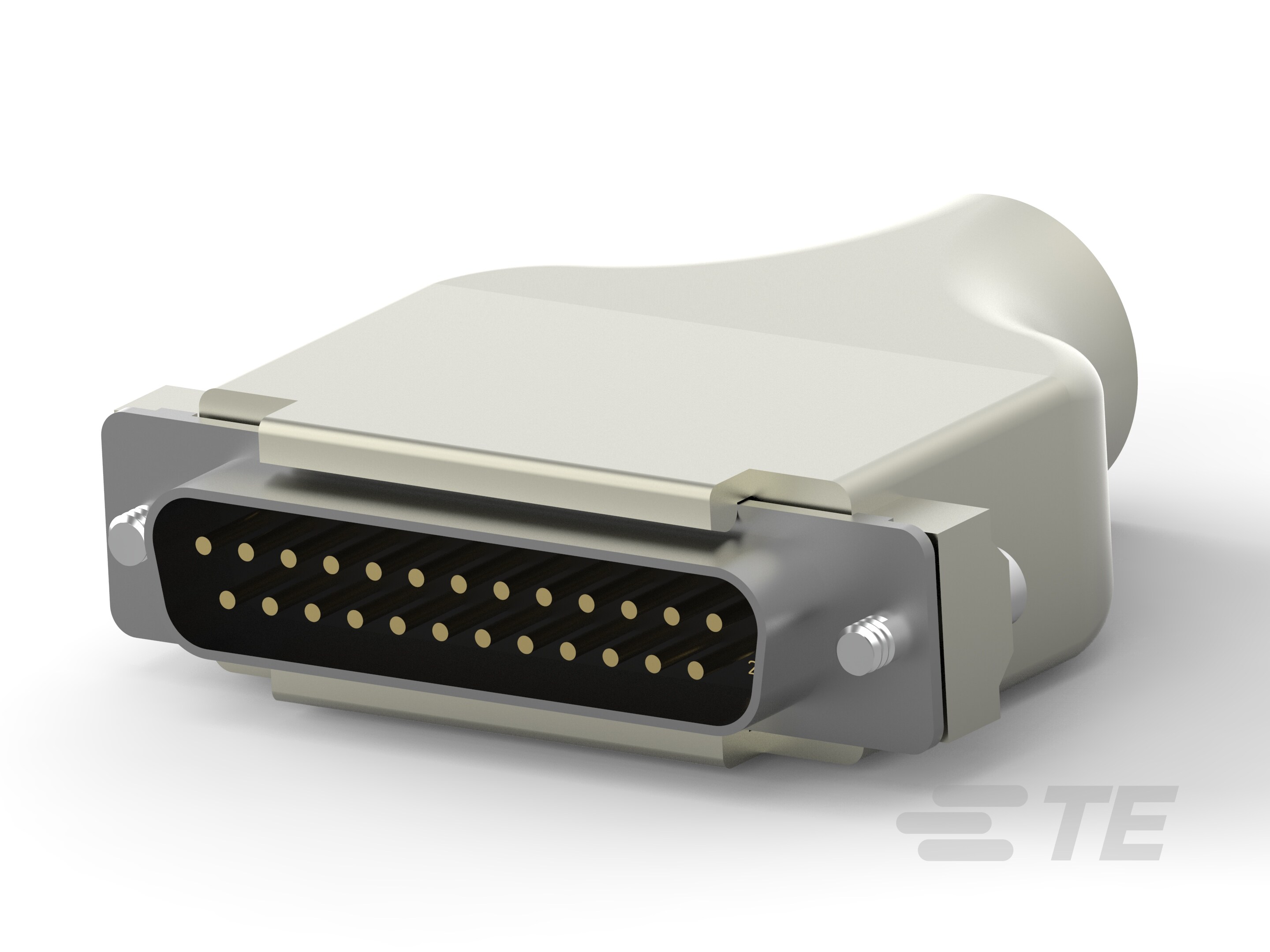

The 749805-9 is a 25-position unassembled shielded D-sub Plug Kit with crimp termination and 0.2 to 0.56mm² wire size. The D-sub connector has tin over copper plated steel shell, black polyester/nylon GF housing and nylon GF insert.

Technical Specifications

Parameters and characteristics for this part

Specification749805-9
Connector LayoutDB, B
Connector StyleD-Sub
Connector TypeMale Pins, Plug
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
Contact TypeSignal
Current Rating0 A
Current RatingVaries by Wire Gauge
FeaturesShielded, Grounding Indents
FinishTin Plated
Flange FeatureMale Short Screw (4-40), Cable Side
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Positions25
Number of Rows2
Shell MaterialSteel
Shell Size3
TerminationCrimp
