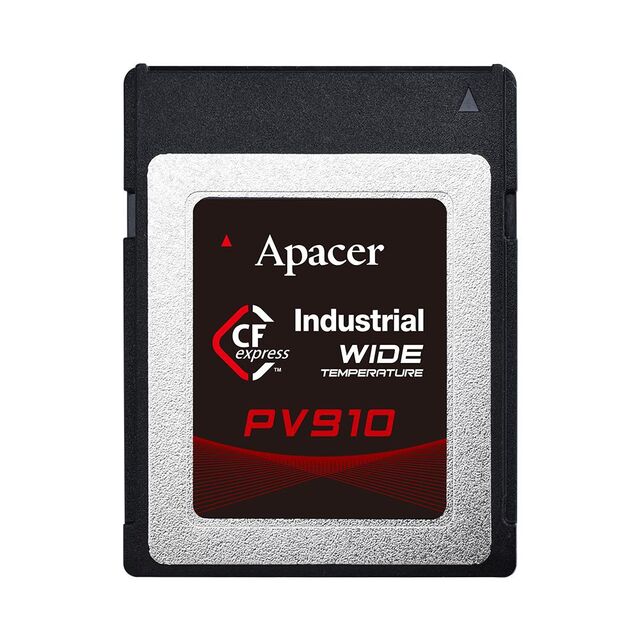

BD2.915HHA.00510
ActiveApacer Memory America
CFEXPRESS WRITE POTECT 120GB WT
BD2.915HHA.00510
ActiveApacer Memory America
CFEXPRESS WRITE POTECT 120GB WT
Description
General part information
BD2.915HHA.00510
Solid State Drive (SSD) FLASH - NAND (TLC) 120GB NVMe PCIe 3.0 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | BD2.915HHA.00510 |
|---|---|
| Current - Max | 515 mA |
| Form Factor | PCIe 3.0 |
| Memory Size | 120 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Height | 3.8 mm |
| Size / Dimension Length | 38.5 mm |
| Size / Dimension Width | 29.6 mm |
| Speed - Read | 1.1 GB/s |
| Speed - Write | 545 MB/s |
| Type | NVMe |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
