87175-3
ActiveTE Connectivity AMP Connectors
15 LOCKING CLIP HSG SR MRKD
87175-3
ActiveTE Connectivity AMP Connectors
15 LOCKING CLIP HSG SR MRKD
Description
General part information
AMPMODU LOCKING CLIP Series

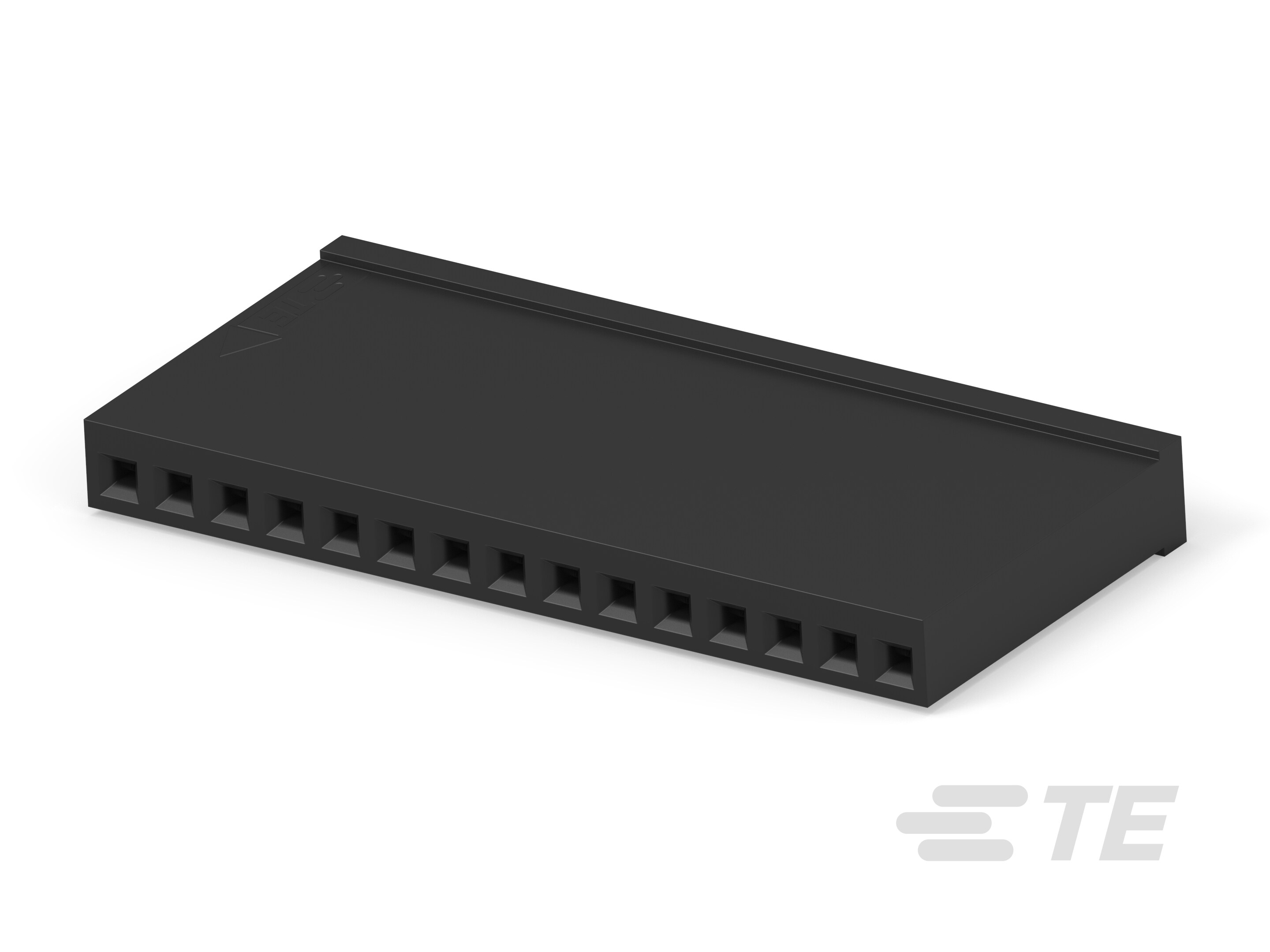

Housing, Receptacle, Wire-to-Board, 15 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Black, Wire & Cable, Power & Signal, AMPMODU LOCKING CLIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 87175-3 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyester, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
