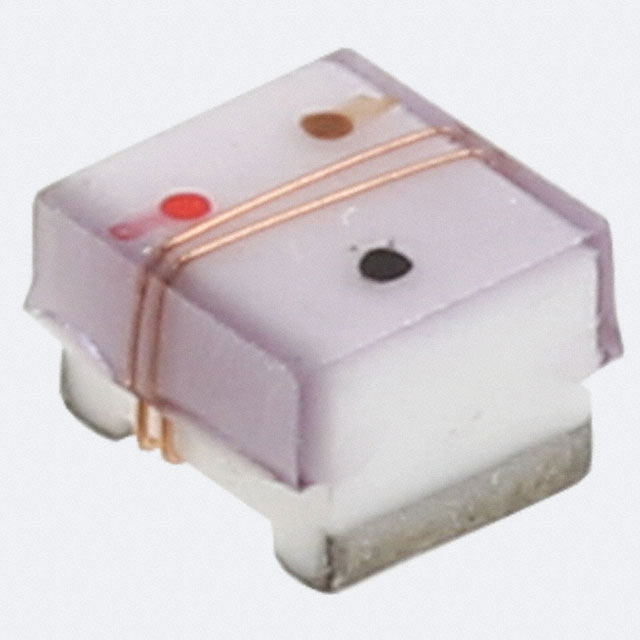

CAF93512
ActiveTE Connectivity AMP Connectors
RF ANT 2.4GHZ CHIP SOLDER SMD
CAF93512
ActiveTE Connectivity AMP Connectors
RF ANT 2.4GHZ CHIP SOLDER SMD
Description
General part information
CAF93512
RF ANTENNA Bluetooth, Wi-Fi Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CAF93512 |
|---|---|
| Antenna Type | Chip |
| Applications | Bluetooth, Wi-Fi |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Height (Max) | 0.079 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 3 |
