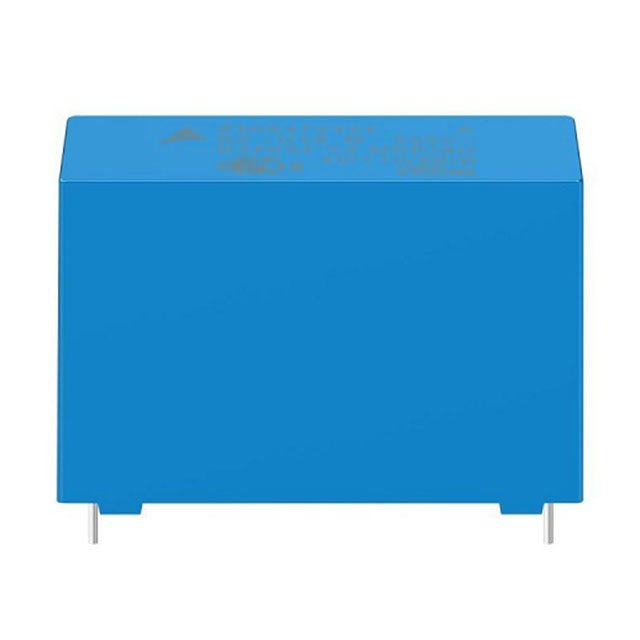

Specification	B32033A4184M000

Applications	EMI, Automotive, RFI Suppression
Capacitance	0.18 µF
Dielectric Material	Polypropylene (PP)
Features	85C/85% Humidity, 85% Humidity, 85C Humidity
Height - Seated (Max)	0.866 in
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	AEC-Q200, Y2
Size / Dimension Length	1.043 in
Size / Dimension Width	0.472 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	350 VAC
Voltage Rating - DC	1 kV
