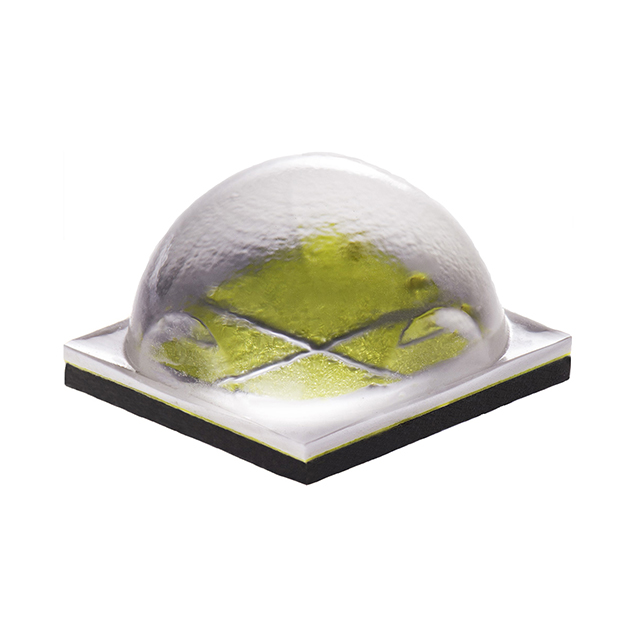

Specification	XHP70A-00-0000-0D00N20E3

CCT (K)	5000 K
Color	Cool, White
Current - Max	4.8 A
Current - Max	2.4A, 4.8A
Current - Test	2.1 A
Current - Test (Other)	1.05A, 2.1A
Flux (Maximum)	1710 lm
Flux (Minimum)	1590 lm
Flux (Typical)	1650 lm
Height - Seated (Max)	0.182 in
Lumens/Watt	131 lm/W
Mounting Type	Surface Mount
Package / Case	2828 (7070 Metric)
Package Name	SMD
Size / Dimension Length	0.276 in
Size / Dimension Width	0.276 in
Thermal Resistance of Package	0.9 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) Options	12V, 6V

XHP70A Series

...

Part	Thermal Resistance of Package	Current - Test	Current - Test (Other)	Package / Case	Flux (Minimum)	Flux (Typical)	Flux (Maximum)	Mounting Type	CCT (K)	Lumens/Watt	Current - Max	Current - Max	Package Name	CRI (Color Rendering Index)	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Viewing Angle	Voltage - Forward (Vf) (Typ) Options	Color	CCT Description
CreeLED, Inc. XHP70A-00-0000-0D0UK40E2	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1290 lm	1335 lm	1380 lm	Surface Mount	5700 K	106 lm/W	4.8 A	2.4A 4.8A	SMD	90	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Cool White
CreeLED, Inc. XHP70A-00-0000-0D0BN40DV	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1710 lm	1770 lm	1830 lm	Surface Mount	6000 K	140 lm/W	4.8 A	2.4A 4.8A	SMD	70	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Cool White
CreeLED, Inc. XHP70A-00-0000-0D0UK20E1	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1200 lm	1245 lm	1290 lm	Surface Mount	6500 K	99 lm/W	4.8 A	2.4A 4.8A	SMD	90	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Cool White
CreeLED, Inc. XHP70A-01-0000-0D0UK40CB	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1290 lm	1335 lm	1380 lm	Surface Mount	6500 K	106 lm/W	4.8 A	2.4A 4.8A	SMD	90	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Cool White
CreeLED, Inc. XHP70A-00-0000-0D0HM227H	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1380 lm	1433 lm	1485 lm	Surface Mount	2700 K	114 lm/W	4.8 A	2.4A 4.8A	SMD	80	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Warm White	2-Step MacAdam Ellipse
CreeLED, Inc. XHP70A-01-0000-0D0HK227H	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1200 lm	1245 lm	1290 lm	Surface Mount	2700 K	99 lm/W	4.8 A	2.4A 4.8A	SMD	80	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Warm White	2-Step MacAdam Ellipse
CreeLED, Inc. XHP70A-01-0000-0D0HM230G	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1380 lm	1433 lm	1485 lm	Surface Mount	3000 K	114 lm/W	4.8 A	2.4A 4.8A	SMD	80	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Warm White	3-Step MacAdam Ellipse
CreeLED, Inc. XHP70A-01-0000-0D0UK240H	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1200 lm	1245 lm	1290 lm	Surface Mount	4000 K	99 lm/W	4.8 A	2.4A 4.8A	SMD	90	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Neutral White	2-Step MacAdam Ellipse
CreeLED, Inc. XHP70A-01-0000-0D0HM40E2	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1485 lm	1538 lm	1590 lm	Surface Mount	5700 K	122 lm/W	4.8 A	2.4A 4.8A	SMD	80	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Cool White
CreeLED, Inc. XHP70A-00-0000-0D0HN250G	0.9 °C/W	2.1 A	1.05A 2.1A	2828 (7070 Metric)	1590 lm	1650 lm	1710 lm	Surface Mount	5000 K	131 lm/W	4.8 A	2.4A 4.8A	SMD	80	0.276 in	0.276 in	0.182 in	120 °	12V 6V	Cool White	3-Step MacAdam Ellipse
