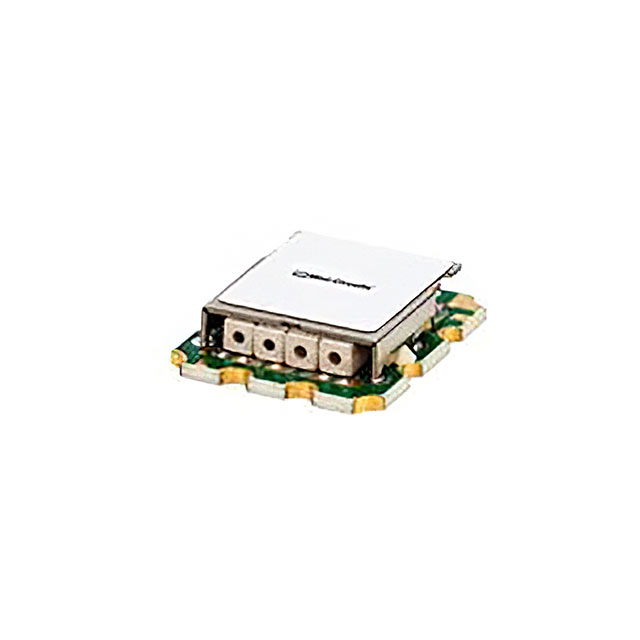

CBP-2150AN+
ActiveMini-Circuits
CERAMIC RESONATOR BAND PASS FILT
CBP-2150AN+
ActiveMini-Circuits
CERAMIC RESONATOR BAND PASS FILT
Description
General part information
CBP-2150AN+
2.15GHz Center Band Pass Ceramic Filter 300 MHz 50Ohm 12-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CBP-2150AN+ |
|---|---|
| Bandwidth | 300 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.15 GHz |
| Height (Max) | 0.35 in |
| Impedance | 50 Ohm |
| Insertion Loss | 1.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD Module |
| Size / Dimension Length | 1.36 in |
| Size / Dimension Width | 0.365 in |
