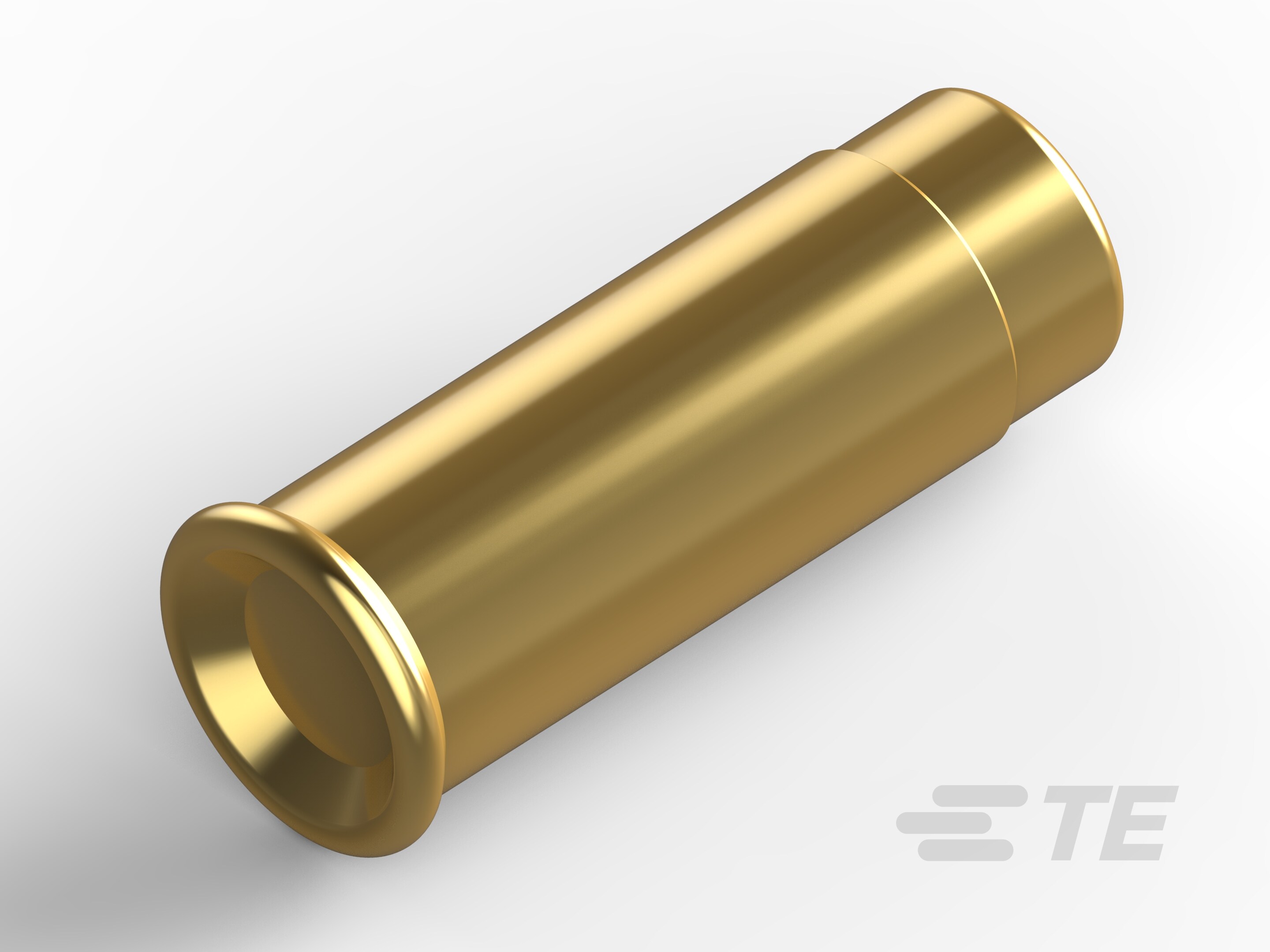

SOCKET,MIN-SPR W/H AU SER-5-1-50871-8

1-50871-8

Active
TE Connectivity AMP Connectors

IC & COMPONENT SOCKETS MIN-SPR W/H AU SER-5

Find alt
SOCKET,MIN-SPR W/H AU SER-5-1-50871-8

1-50871-8

Active
TE Connectivity AMP Connectors

IC & COMPONENT SOCKETS MIN-SPR W/H AU SER-5

Find alt

Description

General part information

1-50871-8

7.32 mm [.288 in] Socket Length, 2.56 mm [.101 in] PCB Hole, Open Bottom, 1.31 – 2.08 mm² Wire, 16 – 14 AWG, Cable-to-Board, Pin Sockets

Technical Specifications

Parameters and characteristics for this part

Specification1-50871-8
Accepts Pin Diameter (Max)0.065 in
Accepts Pin Diameter (Min)0.056 in
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialBeryllium Copper
Flange Diameter0.118 in
Length - Overall0.288 in
Mounting Hole Diameter (Max)0.103 in
Mounting Hole Diameter (Min)0.101 in
Socket Depth0.275 in
Tail TypeNo Tail
TerminationSolder
