HVR6800004703JAC00
ObsoleteVishay Dale

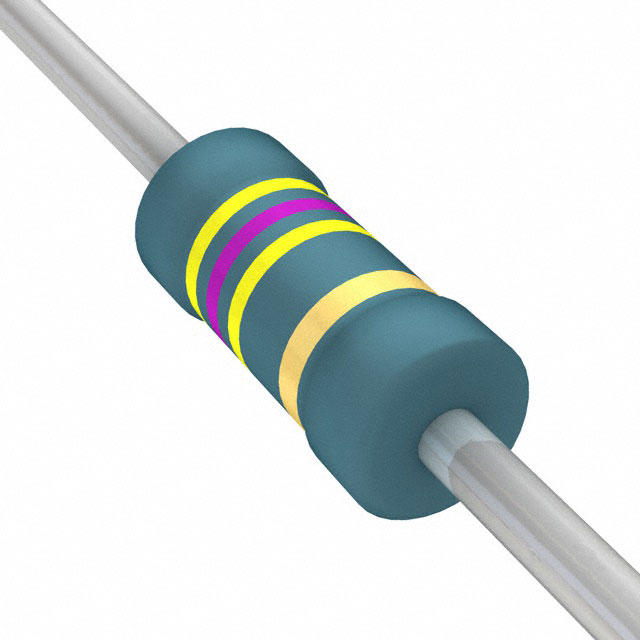

RES 470K OHM 1W 5% AXIAL
HVR6800004703JAC00
ObsoleteVishay Dale
RES 470K OHM 1W 5% AXIAL
Description
General part information
HVR6800004703JAC00
470 kOhms ±5% 1W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVR6800004703JAC00 |
|---|---|
| Composition | Metal Film |
| Features | High Voltage, Pulse Withstanding, Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 470 kOhm |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.657 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
