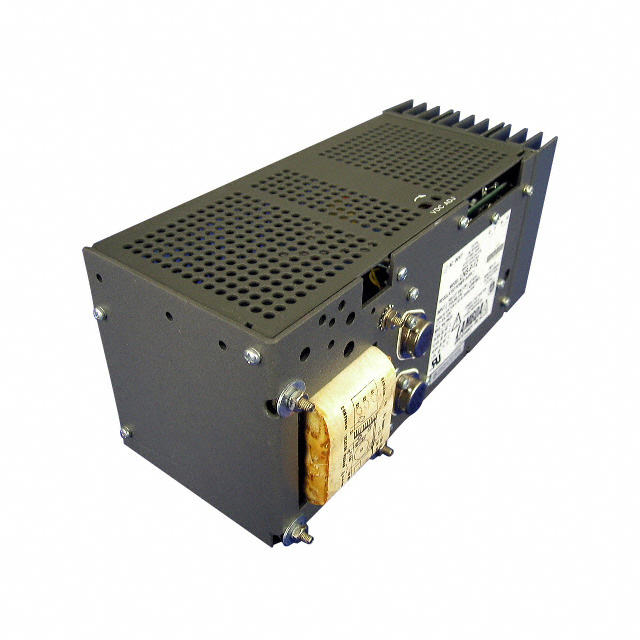

LFS-42-5
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 150W
LFS-42-5
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 150W
Description
General part information
LFS-42-5
Enclosed AC DC Converters 1 Output 5V 95 ~ 132 VAC, 187 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LFS-42-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 30 A |
| Efficiency | 75 % |
| Features | DC Input Capable, Remote Sense, Adjustable Output, Remote On/Off, Load Sharing |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 1.9 in |
| Size / Dimension Length | 5.69 in |
| Size / Dimension Width | 4.75 in |
| Type | Enclosed |
| Voltage - Input (Range 1) Maximum | 132 V |
| Voltage - Input (Range 1) Minimum | 95 VAC |
| Voltage - Input (Range 2) Maximum | 265 VAC |
| Voltage - Input (Range 2) Minimum | 187 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
