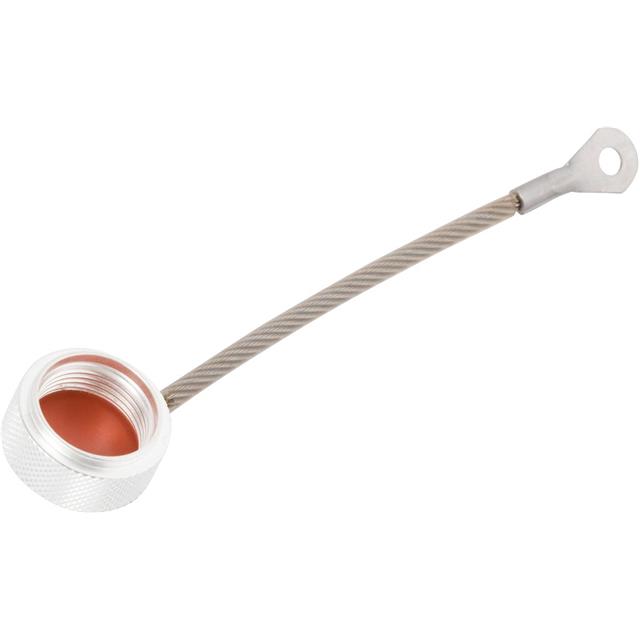

Specification	M39012/25-0111

Accessory Type	Cap (Cover), Dust
Body Finish	Silver
Body Material	Brass
Color	Silver
Connector Style	N Type
Features	Lanyard
For Use With/Related Products	N Type Jacks

M39012 Series

Part	Mating Cycles	Body Material	Body Finish	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Fastening Type	Impedance	Connector Style	Cable Group	Cable Group Diameter (Default)	Shield Termination	Center Contact Material	Frequency - Max	Mounting Type	Housing Color	Connector Type	Includes	Includes Total Count	Features	Color	For Use With/Related Products	Accessory Type
McGill Microwave Systems M39012/80-3006	500 cycles	Stainless Steel	Gold Passivated	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Solder	Threaded	50 Ohm	SMA	RG-402	0.141 in	Solder	Brass	12.4 GHz	Free Hanging (In-Line) Right Angle	Gold Silver	Male Pin Plug
McGill Microwave Systems M39012/80B3101	500 cycles	Stainless Steel	Gold Passivated	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Solder	Threaded	50 Ohm	SMA	RG-405	0.085 in	Solder	Brass	12.4 GHz	Free Hanging (In-Line) Right Angle	Gold Silver	Male Pin Plug
McGill Microwave Systems M39012/56B3011	500 cycles	Stainless Steel		Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Crimp	Threaded	50 Ohm	SMA	RG-178		Crimp	Brass	12.4 GHz	Free Hanging (In-Line) Right Angle	Silver	Male Pin Plug	Connector Heat Shrink	2 pcs
McGill Microwave Systems M39012/56-3026	500 cycles	Stainless Steel		Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Crimp	Threaded	50 Ohm	SMA	316 RG-174		Crimp	Brass	12.4 GHz	Free Hanging (In-Line) Right Angle	Silver	Male Pin Plug	Connector Heat Shrink	2 pcs
McGill Microwave Systems M39012/56B3116	500 cycles	Stainless Steel		Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Crimp	Threaded	50 Ohm	SMA	RG-58		Crimp	Beryllium Copper	12.4 GHz	Free Hanging (In-Line) Right Angle	Silver	Male Pin Plug	Connector Heat Shrink	2 pcs
McGill Microwave Systems M39012/25-0120		Brass	Silver								TNC											Lanyard	Silver	TNC Jacks	Cap (Cover) Dust
McGill Microwave Systems M39012/25-3025		Stainless Steel									SMA											Chain	Silver	SMA Jacks	Cap (Cover) Dust
McGill Microwave Systems M39012/56B3019	500 cycles	Stainless Steel		Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Crimp	Threaded	50 Ohm	SMA	178 RG-174 RG-178		Crimp	Brass	12.4 GHz	Free Hanging (In-Line) Right Angle	Silver	Male Pin Plug	Connector Heat Shrink	2 pcs
McGill Microwave Systems M39012/55B3115	500 cycles	Stainless Steel		Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Crimp	Threaded	50 Ohm	SMA	142 RG-58		Crimp	Beryllium Copper	12.4 GHz	Free Hanging (In-Line)	Silver	Male Pin Plug
McGill Microwave Systems M39012/55-3026	500 cycles	Stainless Steel		Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Crimp	Threaded	50 Ohm	SMA	316 RG-174		Crimp	Brass	12.4 GHz	Free Hanging (In-Line)	Silver	Male Pin Plug	Connector Heat Shrink	2 pcs
